11-bit, 5 GSPS SAR ADC - GlobalFoundries GF22FDX
The A11B5G is a low-power, high-speed analog to digital converter (ADC) intellectual property (IP) design block.
Overview
The A11B5G is a low-power, high-speed analog to digital converter (ADC) intellectual property (IP) design block. It is a hybrid-SAR ADC, with 11-bit resolution and a sampling rate of 5 gigasamples-per-second (GSPS).
The A11B5G is a unique solution that provides the dual benefit of reaching a high bandwidth of 6 GHz, while maintaining low power consumption at 49mW, making it a perfect fit for designs with high efficiency, low power and high performance requirements.
The advanced IP block is has been designed and verified for the GF22FDX fabrication process with FDSOI technology to provide superior performance/power specifications.
The ADC IP is also available in a radiation-tolerant version that can function under harsh environmental constraints.
Key features
- 11-bit resolution
- 5 GSPS sampling rate
- 6 GHz Input Bandwidth
- 49 mW power
- Dynamic Performance:
- SFDR: 59.5 dBc
- SNDR: 54.4 dB
- ENOB: 8.5
- Radiation-tolerant design available: A12B5GRH
Block Diagram

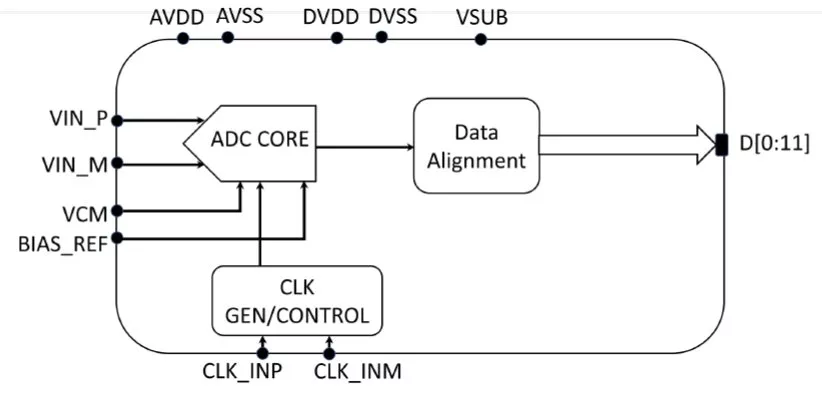

A11B5G-GF22 block diagram
Benefits
- Resolution (bits): 11.0
- Sampling rate (GSPS): 5.0
- SFDR (dBc): 60.3
- SNDR (dB): 51.7
- ENOB: 8.3
- Input Bandwidth (GHz): 6.0
- Power (mW): 49.0
- Architecture: Hybrid
- Layout area (um x um): 578 x 634
- Foundry: GlobalFoundries GF22FDX FDSOI
- Node: 22nm
- Maturity: Silicon Qualification Underway
Applications
- High Performance Data Acquisition
- Direct RF Down Conversion
- High-speed test and measurement systems
- Oscilloscopes, spectrometers & digitizers
- Wideband Communications and Networking
- Microwave Receivers
- Software-defined Radio
- Phased Array and Radar
- LiDAR
