12-bit, 2Msps, 1.8V, 0.5µs, SAR Analog-to-Digital Converter IP on TSMC CLN28HPM/HPC
The T28HPM_AT28MADC000012206BSKA is a 12-bit, 2Msps, 1.8V, 0.5µs, successive approximation register (SAR) analog-to-digital converter (A/D) that is fabricated using TSMC's CLN28HPM/HPC (CMOS Logic Node 28nm High-Performance Mobile and 28nm High-Performance Compact) process technology.

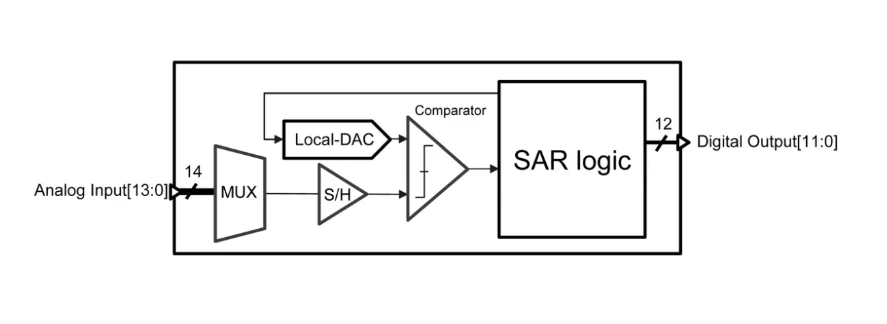

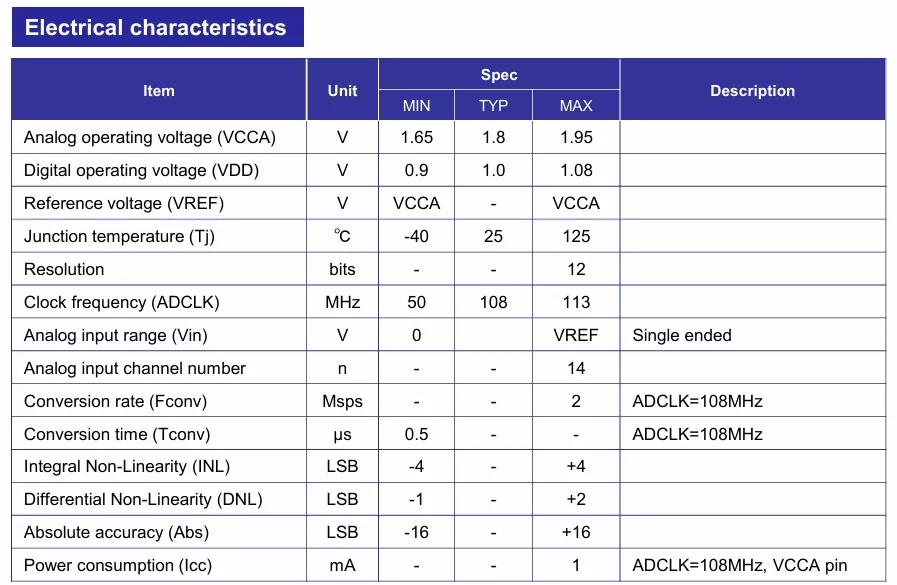

Electrical characteristics
| Item | Unit | Spec MIN | Spec TYP | Spec MAX | Description |
|---|---|---|---|---|---|
| Analog operating voltage (VCCA) | V | 1.65 | 1.8 | 1.95 | |
| Digital operating voltage (VDD) | V | 0.9 | 1.0 | 1.08 | |
| Reference voltage (VREF) | V | VCCA | - | VCCA | |
| Junction temperature (Tj) | °C | -40 | 25 | 125 | |
| Resolution | bits | - | - | 12 | |
| Clock frequency (ADCLK) | MHz | 50 | 108 | 113 | |
| Analog input range (Vin) | V | 0 | VREF | Single ended | |
| Analog input channel number | n | - | - | 14 | |
| Conversion rate (Fconv) | Msps | - | - | 2 | ADCLK=108MHz |
| Conversion time (Tconv) | µs | 0.5 | - | - | ADCLK=108MHz |
| Integral Non-Linearity (INL) | LSB | -4 | - | +4 | |
| Differential Non-Linearity (DNL) | LSB | -1 | - | +2 | |
| Absolute accuracy (Abs) | LSB | -16 | - | +16 | |
| Power consumption (Icc) | mA | - | - | 1 | ADCLK=108MHz, VCCA pin |
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 28nm | HPC | Available on request |
| TSMC | 28nm | HPM | Available on request |
Note: some files may require an NDA depending on provider policy.
