100G UDP IP Stack
The 100G UDP IP Stack provides high-speed LAN or point-to-point communication while offloading UDP/IP tasks from the host.
Overview
The 100G UDP IP Stack provides high-speed LAN or point-to-point communication while offloading UDP/IP tasks from the host. ARP and ICMP support ensures smooth network operation and easily integrates into SoC designs, even without a host processor. The AXI4-stream data width of the 100G interface shall be 512 bits for both the MAC and Application interface.
Key features
- 100G Ethernet
- IPv4 support without packet fragmentation
- Jumbo Frames
- Transmit and Receive
- ARP with Cache
- ICMP (Ping Reply) UDP Unicast
- UDP Port Filtering
- 1-8 UDP Transmit, and 1-8 UDP Receive channels
- ARP support for operation in networks with Dynamic IP allocation.
Block Diagram

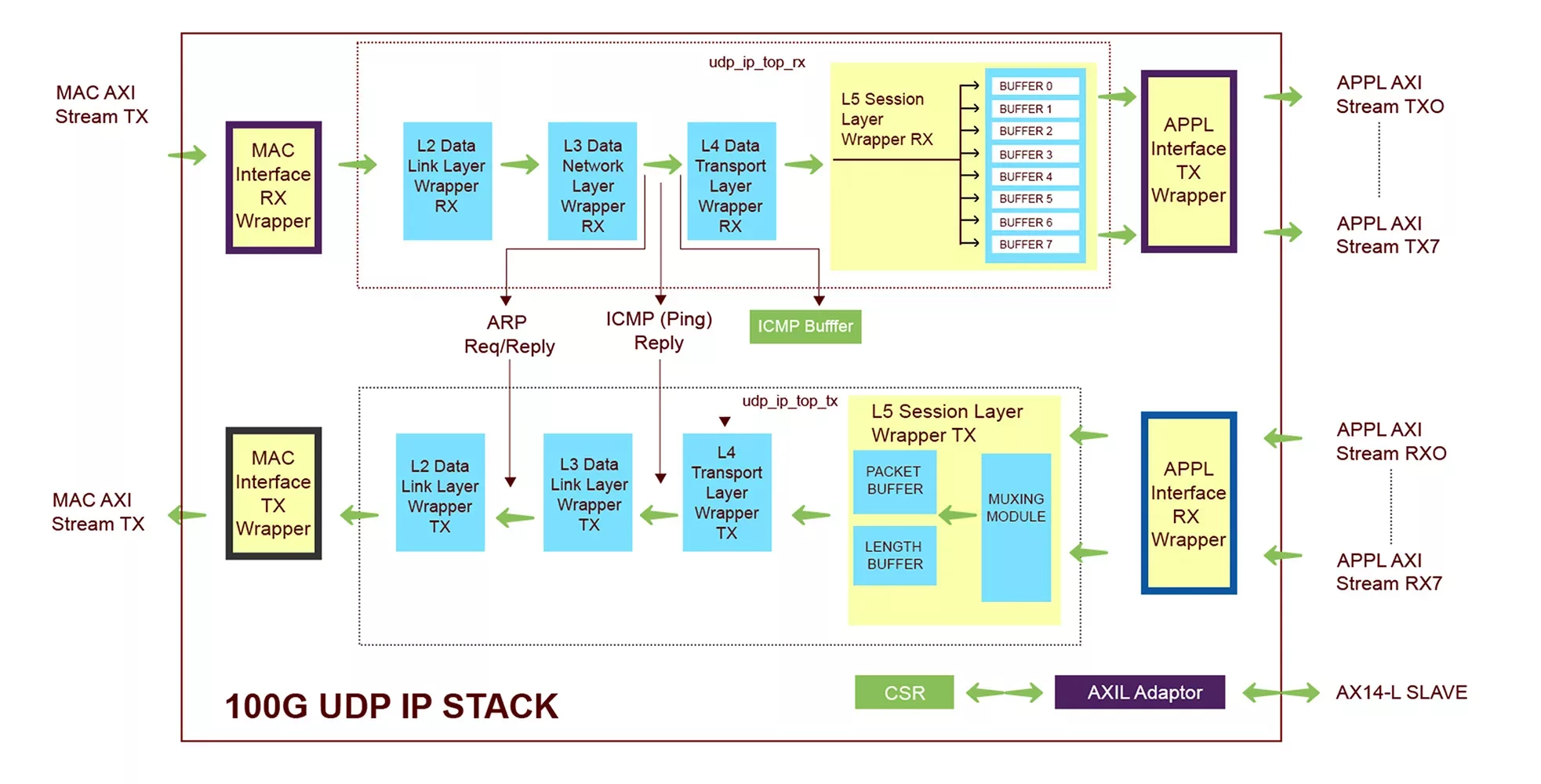

100G UDP IP Stack block diagram
Applications
- Voice over IP (VoIP)
- Real-Time Communication
- Media Streaming
- Online Gaming
- Multicasting
- Virtual Private Networks (VPN)
- Custom Network Applications
Specifications
Identity
Part Number
100G UDP IP Stack
Vendor
Logic Fruit Technologies
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
