10 Bit 40 MS/s Pipeline ADC on AMS C18

The IP consists of a 10 bit 40 MS/s pipeline ADC.

Overview

The IP consists of a 10 bit 40 MS/s pipeline ADC. A time-interleaved architecture with 1.5 bit per stage is used. The operational amplifiers are shared between the interleaved stages for reduced power consumption. The interleaving is transparent for the application.

The latency of the ADC is 10 clock cycles. On the one hand, the ADC operation can be triggered using the adc_start input signal. On the other hand, continuous conversion of the input signal can be selected.

The integrated buffer provides a high impedance input in order to simplify the interface to the driving circuit. For low-power consumption a sample-and-hold-less architecture is used.

The reference drivers are included, which enables the operation using a single reference voltage. 7 bit trimming of the reference is included.

The ADC is silicon proven using the AMS H18 process. Measurement results are available from evaluation and volume production. One application of the IP is an industrial sensor ASIC for safety critical applications.

Fraunhofer IIS provides a detailed documentation and support for the IP integration. Modifications, extensions and technology ports of the IP are available on request.

Key features

  • Resolution: 10 bit
  • Conversion rate: up to 40 MS/s
  • Power consumption: 30 mW @ 1.8 V
  • Integral non-linearity: +/- 2.5 LSB
  • Diff. non-linearity: +/- 1.0 LSB
  • Supply voltage: 1.72 V – 1.88 V
  • Operation clock: 1.0 – 40 MHz
  • Input voltage range: 0.53 V – 1.05 V
  • Temperature range: -40 °C – 125 °C

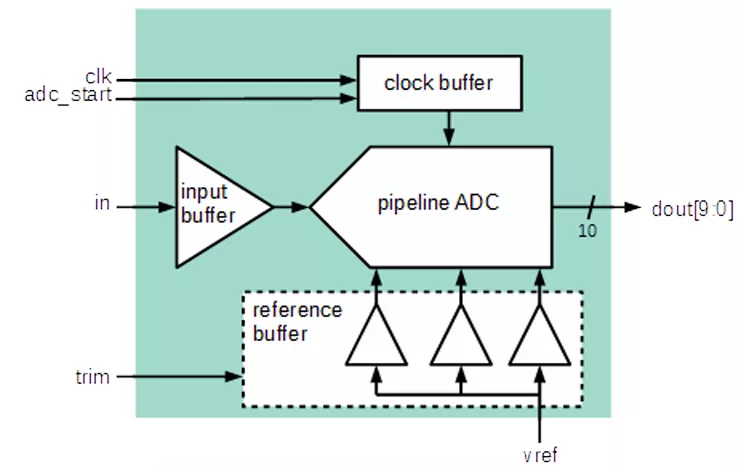

Block Diagram

Benefits

  • Low design risk due to silicon proven design
  • Easy to use input due to integrated input buffer
  • Robust operation across full temperature range from -40 °C up to 125 °C
  • Simple integration due to integrated reference drivers and reference trimming DAC

Applications

  • Industrial
  • Automotive
  • IoT
  • Medical
  • Automation

What’s Included?

  • GDSII data
  • Simulation model
  • Documentation
  • Silicon validation report
  • Integration support

Specifications

Identity

Part Number
ADC10b040MS180nm
Vendor
Fraunhofer Institute Integrated Circuits and Systems (IIS)
Type
Silicon IP

Analog

Resolution bits
10 Bit

Files

Note: some files may require an NDA depending on provider policy.

Provider

Fraunhofer Institute Integrated Circuits and Systems (IIS)
HQ: Germany
The Fraunhofer Institute for Integrated Circuits (IIS) offers core components for ASIC and FPGA solutions. The cores are developed by Fraunhofer IIS in Erlangen, Germany and selected partners. Over 25 years of system and design know-how, analog and digital design experience, and the needs of our customers have influenced the methodology to develop these cores. Each core has been verified with sophisticated test procedures at Fraunhofer IIS before it is offered to the customers. As a result, the cores are of high quality and proven technology. Many components are parameterizable and allow the designer to tailor each component to the needs of the application. Therefore, using our components saves lots of design and verification effort.

Learn more about ADC IP core
