1.17 V Reference current and voltage source

Reference current and voltage source is used to supply any analog blocks.

Overview

Reference current and voltage source is used to supply any analog blocks. It is based on the reference voltage source forming temperature compensation voltage. It coordinates to voltage-to-current converters and forms reference currents from external and internal resistors. The battery low power indicator consists of a comparator which is based on two-stage operational amplifiers.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.

Key features

iHP SGB25V
Output voltage 1.17 V
Reference current termocompensation in wide temperature range
Voltage termocompensation in wide temperature range
Low current consumption
Built-in battery low power indicator
Small area
Portable to other technologies (upon request)

Block Diagram

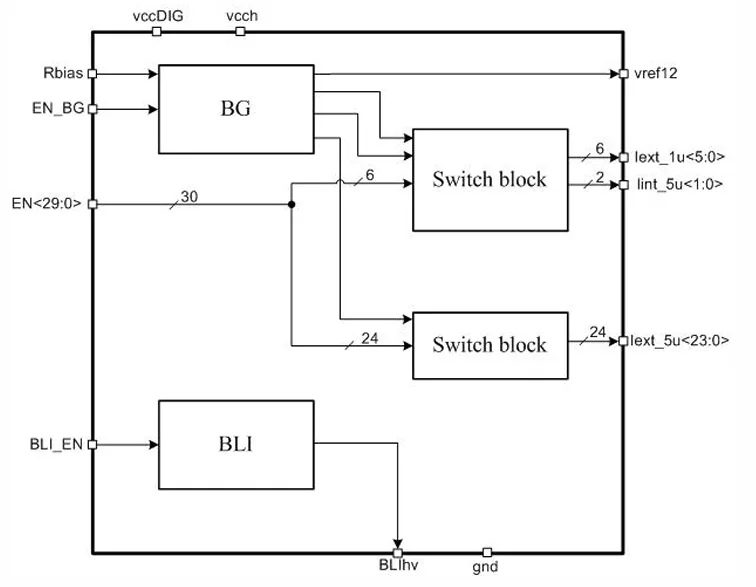

250iHP_RS_03 block diagram

Applications

Supply voltage stabilization systems
Comparison and detection systems
System-on-chip for different purposes

What’s Included?

Schematic or NetList
Abstract model (.lef and .lib files)
Layout view (optional)
Behavioral model (Verilog)
Extracted view (optional)
GDSII
DRC, LVS, antenna report
Test bench with saved configurations (optional)
Documentation

Specifications

Identity

Part Number

250iHP_RS_03

Vendor

NTLab

Type

Silicon IP

Files

Product Sheet Download
