Vendor: Omni Design Technologies, Inc. Category: Voltage Reference

High-performance reference current and voltage generator in GF 22 FDX

The ODT-REF-GF22FDX-SV1P8 is a highperformance reference current and voltage generator.

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX View all specifications

Overview

The ODT-REF-GF22FDX-SV1P8 is a highperformance reference current and voltage generator. The block incorporates a proprietary architecture to achieve high power supply rejection across an ultra-wide bandwidth, which is needed for high-speed data converter applications.

ODT-REF-GF22FDX-SV1P8 does not need any calibration or programming. If values other than the defaults are needed, programming capability exists for all currents and voltages. Default mode for current generation requires a 5kΩ external precision resistor tied to a bump.

The IP includes built-in calibration to automatically match an internal resistor to an external resistor. This calibration can be used in production test and applied to Non-Volatile Memory (NVM) outside the IP to allow for precise trimming of the IP.

The IP is powered by a 1.8V analog supply and a 0.8V digital supply.

Key features

  • Precision band-gap reference
  • 40dB AC PSRR, 50dB DC PSRR
  • ±12mV voltage accuracy
  • 30ppm/C temperature drift
  • 10µs wake up time
  • Programmable voltage and current settings

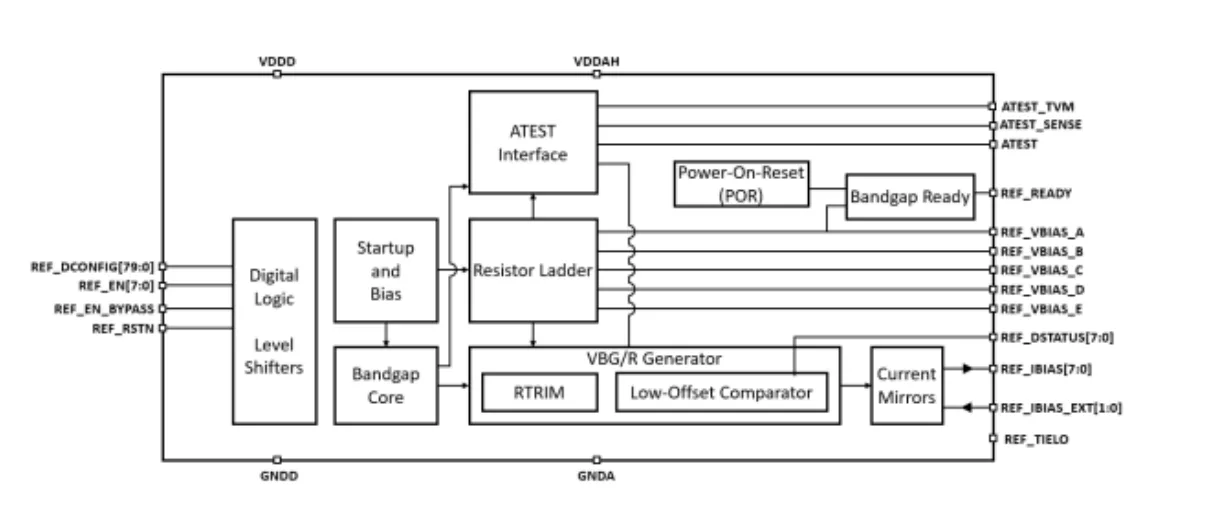

Block Diagram

ODT-REF-GF22FDX-SV1P8 block diagram

Applications

  • General purpose reference voltage and current generation.
  • Bias generation for data converters

What’s Included?

  • Datasheet
  • Hard GDS Database (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top-level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model (as appropriate)
  • Integration and Customer Support

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX —

Specifications

Identity

Part Number
ODT-REF-GF22FDX-SV1P8
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Provider

Contact Omni Design Technologies, Inc.
