Vendor: Omni Design Technologies, Inc. Category: Voltage Reference

Ultra-Low-Power Bandgap Voltage Reference in 40nm CMOS

The ODT-REF-SV1P8-ULP140N_40 is an ultralow power CMOS bandgap reference designed in a 40nm standard CMOS process without needing…

Contact Provider Request Datasheet

Overview

The ODT-REF-SV1P8-ULP140N_40 is an ultralow power CMOS bandgap reference designed in a 40nm standard CMOS process without needing the use of any bipolar devices.

This IP operates over a temperature range of -40 to 125C while taking less than 200nA from the supply, with a nominal current of 140nA. A single room temperature trim can be used to achieve a temperature coefficient less than 40ppm/C.

The bandgap reference output is designed for low output noise. It has a provision for user added capacitor that can reduce noise further. The entire block can be powered down in a low power sleep mode.

The bandgap reference block also provides a current output, IREF that is constant over the operating temperature range of -40C to 125C and can be used as a reference for biasing current mirrors.

Key features

  • 140nA supply current
  • Less than 40ppm/C temperature coefficient
  • - 40C to 125C operation
  • Supply voltage down to 1.62V
  • Nominal 0.6 V output voltage
  • Buffered output voltage
  • Internal startup circuit
  • 10nA typical, 20nA max sleep current
  • Standard CMOS process
  • No external components

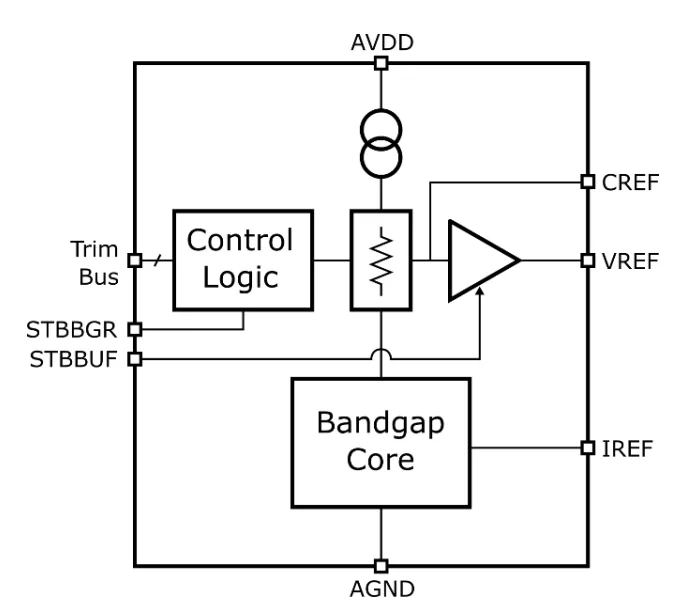

Block Diagram

ODT-REF-SV1P8-ULP140N_40 block diagram

Applications

  • Battery powered devices
  • Remote sensors and monitoring
  • Portable medical diagnostics
  • Handheld instrumentation
  • Energy harvesting
  • Hearing aids
  • Wearable devices

What’s Included?

  • Datasheet
  • Hard Macro (GDSII)
  • Characterization Report (as applicable)
  • Abstract View (LEF) for top level connectivity
  • Spectre Netlist (as needed upon request)
  • Behavioral Model
  • Integration and Customer Support

Specifications

Identity

Part Number
ODT-REF-SV1P8-ULP140N_40
Vendor
Omni Design Technologies, Inc.
Type
Silicon IP

Provider

Contact Omni Design Technologies, Inc.
