The ODT-REF-16FFCT-SV1P8 is a highperformance reference current and voltage generator.

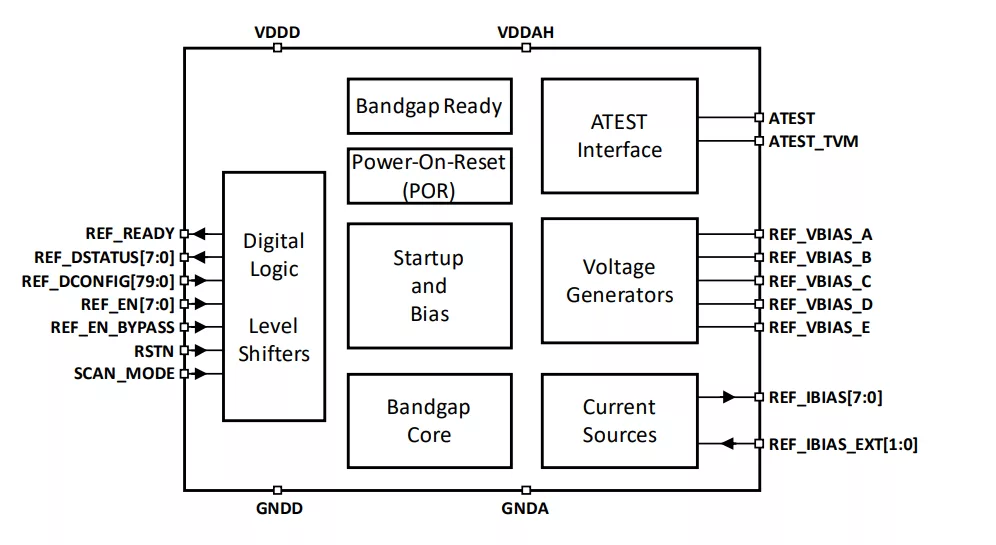

The ODT-REF-16FFCT-SV1P8 is a highperformance reference current and voltage generator. The block incorporates a proprietary architecture to achieve high power supply rejection across an ultra-wide bandwidth, which is needed for high speed data converter applications.
ODT-REF-16FFCT-SV1P8 does not need any calibration or programming. If values other than the defaults are needed, programming capability exists for all currents and voltages. Default mode for current generation requires a 5kΩ external precision resistor tied to a bump.
The IP includes built-in calibration to automatically match an internal resistor to an external resistor. This calibration can be used in production test and applied to Non-Volatile Memory (NVM) outside the IP to allow for precise trimming of the IP.
The ODT-REF-16FFCT-SV1P8 is powered by a 1.8V analog supply and a 0.8V digital supply.
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 16nm | 16nm 160 nm | — |
1.8V programmable voltage and current reference on TSMC 16nm FFC is a Voltage Reference IP core from Omni Design Technologies, Inc. listed on Semi IP Hub. It is listed with support for tsmc.
