Vendor: NTLab Category: Voltage Reference

0.6V/10u, 20uA, 100nA, 200nA Reference voltage and current source

055TSMC_RS_05 is a reference voltage and current source that consists of bandgap voltage reference, two voltage-to-current conver…

Contact Provider Request Datasheet
TSMC 55nm GP Pre-Silicon View all specifications

Overview

055TSMC_RS_05 is a reference voltage and current source that consists of bandgap voltage reference, two voltage-to-current converters and current-voltage buffer. One of voltage-to-current converter is based on external resistor and thus could be considered as process and temperature independent current reference; the another is based on internal resistor and follows its process and temperature variations.

Key features

  • TSMC CMOS 55 nm
  • Output voltage 0.606 V
  • Temperature-compensated voltage in wide temperature range
  • Low current consumption
  • Small area

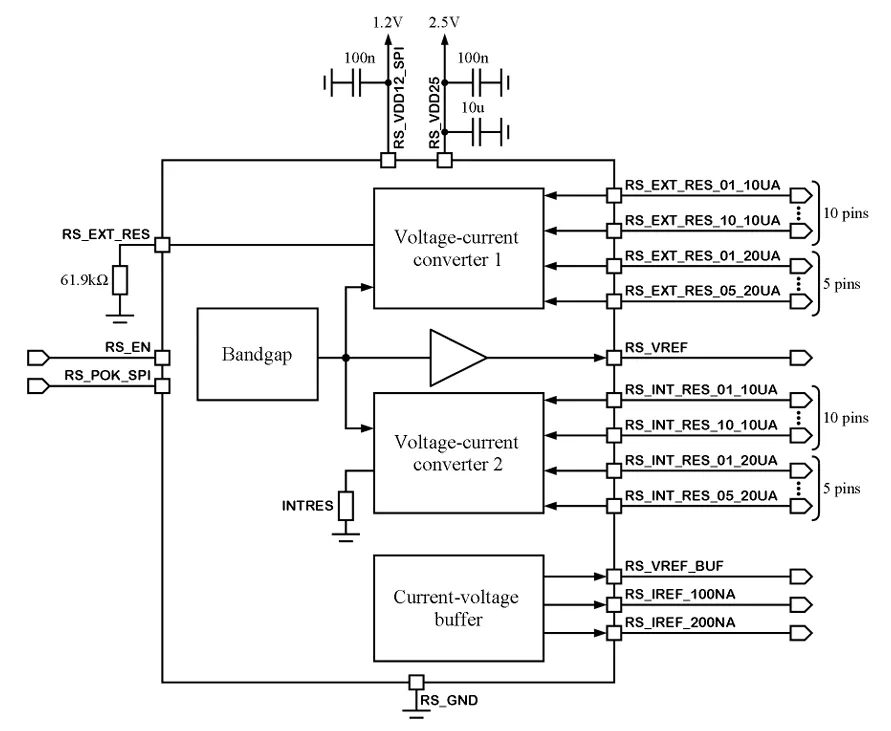

Block Diagram

055TSMC_RS_05 block diagram

Applications

  • Supply voltage stabilization systems
  • Comparison and detection systems
  • System-on-chip for different purposes
  • Measurement and calibration systems
  • Technological research of microelectronic components

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 55nm GP Pre-Silicon

Specifications

Identity

Part Number
055TSMC_RS_05
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
