Vendor: T2M GmbH Category: Multi-Protocol PHY

XPHY Low power Chip to Chip SerDes IP, Silicon Proven in ST 28FDSOI

These IPs are targeted at applications requiring high speed, high bandwidth, low-power consumption, and low-latency interfaces.

Overview

These IPs are targeted at applications requiring high speed, high bandwidth, low-power consumption, and low-latency interfaces.

Key features

  • Low Power Chip-to-Chip SERDES
  • From 10Gb/s to 11Gb/s
  • Technology: 28FDSOI 8ML & 10ML
  • Platform: 1 Data Slice and 1 Clock Slices
  • RX: AC or DC coupling with low-power CTLE
  • TX: Power-optimized resistive bridge driver
  • Optimized for Low Power Chip-to-Chip SERDES Applications

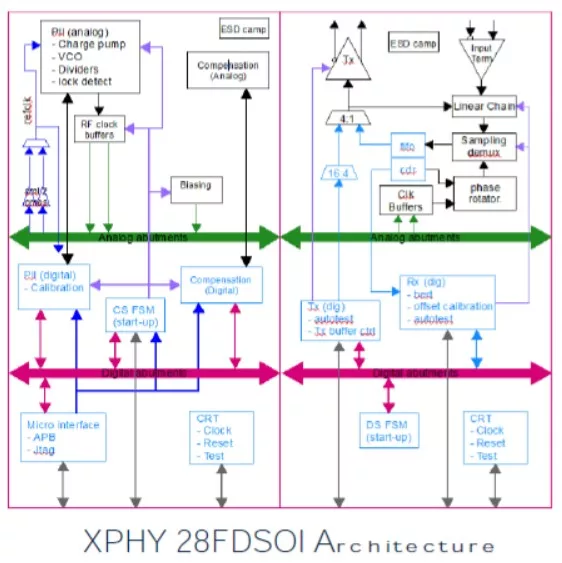

Block Diagram

XPHY Low power Chip to Chip SerDes IP in 28FDSOI block diagram

Benefits

  • Ultra low voltage operation
  • Optimized for low power Chip to Chip SERDES Applications

Applications

  • IOT
  • Wearables

Specifications

Identity

Part Number
XPHY Low power Chip to Chip SerDes IP in 28FDSOI
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
