V-by-One/LVDS Tx IP, Silicon Proven in GF 22FDX

Based on internal equipment connections, the V-by-One® HS technology aims to transmit video signals at high data rates.

Contact Provider Request Datasheet
GlobalFoundries 22nm FDX In Production View all specifications

Overview

Based on internal equipment connections, the V-by-One® HS technology aims to transmit video signals at high data rates. The requirements to build a transmitter and receiver are laid out in the V-by-One®HS Standard. The available 8-lane and 16-lane PHYs for Tx and Rx support up to 4Gbps/lane. A transmitter for LVDS with a physical layer IP. Up to 1.5Gbps of data rate is supported by this IP, which comprises of 20-lane (4 x 4D1C) LVDS drivers.

Key features

  • LVDS compliant Tx
  • 4 groups of 4-Data
  • 1-Clock channels Each lane/group can be turned on/off individually Data/Clock can be assigned to any lane within the group
  • Differential polarity can be flip per lane
  • Supports from 168Mbps to 1.5Gbps data rate
  • Supports reduced swing mode
  • X7 Multiplier PLL for serial clock generation
  • Configurable analog characteristics
  • PLL loop filter
  • PLL VCO gain
  • Differential voltage Common-mode voltage
  • Pre-emphasis strength
  • Silicon Proven in GF 22nm FDX

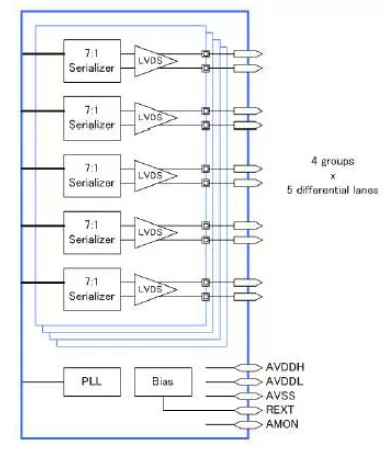

Block Diagram

V-by-One/LVDS Tx IP in 22FDX block diagram

What’s Included?

  • Datasheet
  • Integration guideline
  • GDSII or Phantom
  • GDSII Layer map table
  • CDL netlist for LVS
  • LEF Verilog behavior model
  • Liberty timing model DRC/LVS/ERC results

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX In Production

Specifications

Identity

Part Number
V-by-One/LVDS Tx IP in 22FDX
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
Contact T2M GmbH
