Vendor: T2M GmbH Category: Single-Protocol PHY

USB 3.1 Gen1/Gen2 PHY IP, Silicon Proven in TSMC 28HPC+

This PHY IP supports both USB 3.1 Gen1 & Gen2.

USB 3.1 TSMC 28nm HPC+ In Production View all specifications

Overview

This PHY IP supports both USB 3.1 Gen1 & Gen2. By providing a full on-chip physical transceiver solution with Electro Static Discharge (ESD) protection, an integrated self-test module with built-in jitter injection. This USB 3.1 Gen2 PHY IP implements USB3.1 Gen2 transceiver and can be used as host and device. PHY IP supports USB3.1 Gen2 high speed data rate up to 10Gbps with integrated mixed signal circuit, also supports Gen1 5Gbps data rate.

Key features

  • Support PHY interface (PIPE4.3) enables multiple IP sources for USB3 MAC layer
  • Supports 5.0Gbps and 10Gbps serial data transmission rate
  • Supports 16-bit or 32-bit parallel interface
  • Data and clock recovery from serial stream
  • Support 8b/10b encoder/decoder (Gen1), 128/132 encoder/ decoder (Gen2) and error indication
  • Tunable receiver detection to detect worse case cables
  • Low Frequency Periodic Signaling (LFPS) transmission and reception
  • Support SSCG function to reduce EMI effects with tunable down-spread amplitude
  • Selectable TX margining, TX de-emphasis and signal swing values
  • Built-in-self-test with internal Loopback test option
  • Programmable analog circuit parameter adjustment and internal test control
  • Compliant with USB3.1 Gen2 base specification
  • Silicon Proven in TSMC 28HPC+

Block Diagram

USB 3.1 Gen1/Gen2 PHY IP in 28HPC+ block diagram

What’s Included?

  • GDSII & layer map
  • Place-Route views (.LEF)
  • Liberty library (.lib)
  • Verilog behavior model
  • Netlist & SDF timing
  • Layout guidelines, application notes
  • LVS/DRC verification reports
  • Test patterns and Test Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

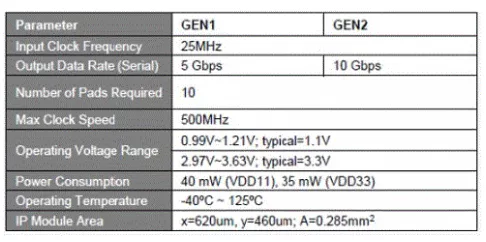

Specifications

Identity

Part Number
USB 3.1 Gen1/Gen2 PHY IP in 28HPC+
Vendor
T2M GmbH
Type
Silicon IP

Standards & Interfaces

Supported Standards
USB 3.1

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
