Vendor: Cadence Design Systems, Inc. Category: Single-Protocol PHY

Low-Speed Ethernet SerDes

16Gbps and 10Gbps multi-protocol SerDes PHY

Contact Provider Request Datasheet

Overview

Cadence Ethernet SerDes IP solutions address the performance, power, and area requirements of today’s mobile, consumer, and enterprise (infrastructure) markets with extensive standard support for the latest PCI Express® (PCIe®), Ethernet and USB specifications. Available for both low-power mobile applications and high-performance computing applications, the Ethernet SerDes PHY IP is pre-integrated with Cadence controllers and equipped with extensive test features for superior interoperability and the lowest risk path to SoC success.

Key features

  • Wide range of protocols that support networking, HPC, and applications
  • Low-latency, long-reach, and low-power modes
  • Multi-Link PHY—mix protocols within the same macro
  • EyeSurf —non-destructive on-chip oscilloscope
  • Extensive set of isolation, test modes, and loop-backs including APB and JTAG
  • Supports 16-bit, 20-bit, and 32-bit PIPE and non-PIPE interfaces
  • Selectable serial pin polarity reversal for both transmit and receive paths

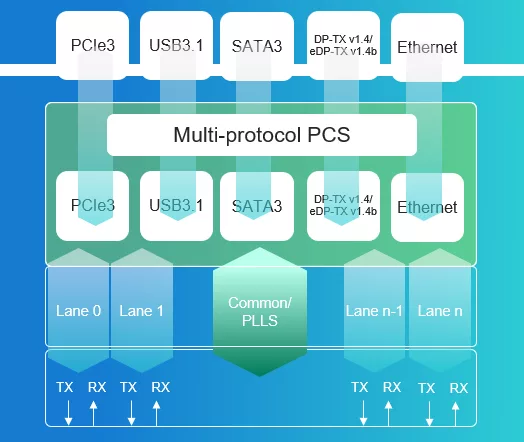

Block Diagram

Click to open fullscreen

Benefits

  • Low Power: Low-active and low-leakage optimized design
  • High Flexibility: Flexible lane configuration with multi-protocol multi-link support
  • Comprehensive Testability: Extensive testability support for BIST, scan, loopbacks, SoC isolation, and on-chip eye plotter

Specifications

Identity

Part Number
Low-Speed Ethernet SerDes
Vendor
Cadence Design Systems, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Cadence Design Systems, Inc.
HQ: USA
If you want to achieve silicon success, let Cadence help you choose the right IP solution and capture its full value in your SoC design. Cadence® IP solutions offer the combined advantages of a high-quality portfolio, an open platform, a modern IP factory approach to quality, and a strong ecosystem. Now you can tackle IP-to-SoC development in a system context, focus your internal effort on differentiation, and leverage multi-function cores to do more, faster. The Cadence IP Portfolio includes silicon-proven Tensilica® IP cores, analog PHY interfaces, standards-based IP cores, verification IP cores, and other solutions as well as customization services for current and emerging industry standards. The Cadence IP Factory provides you with an automated approach to the customization, delivery, and verification of SoC IP. As a result, you can spend more time on differentiation, with the assurance that you'll meet your performance, power, and area requirements. Choosing Cadence IP enables you to design with confidence because you have more freedom to innovate your SoCs with less risk and faster time to market.
