Overview
The USB-C 3.0 and USB 3.0 PHY IP provide designers with the industry's best combination of low area and low power with support for the leading process technologies from 65-nm to 14/16-nm FinFET. Both the USB-C and USB 3.0 PHYs offer a single efficient GDSII design that supports all four USB 3.0 speed modes (SuperSpeed, High-Speed, Full-Speed, and Low-Speed). To maximize battery life in mobile applications, the USB-C/USB 3.0 PHYs are designed to minimize power consumption and standby current. In addition, the USB-C 3.0 femtoPHY is optimized to support the USB Type-C connectivity specification.

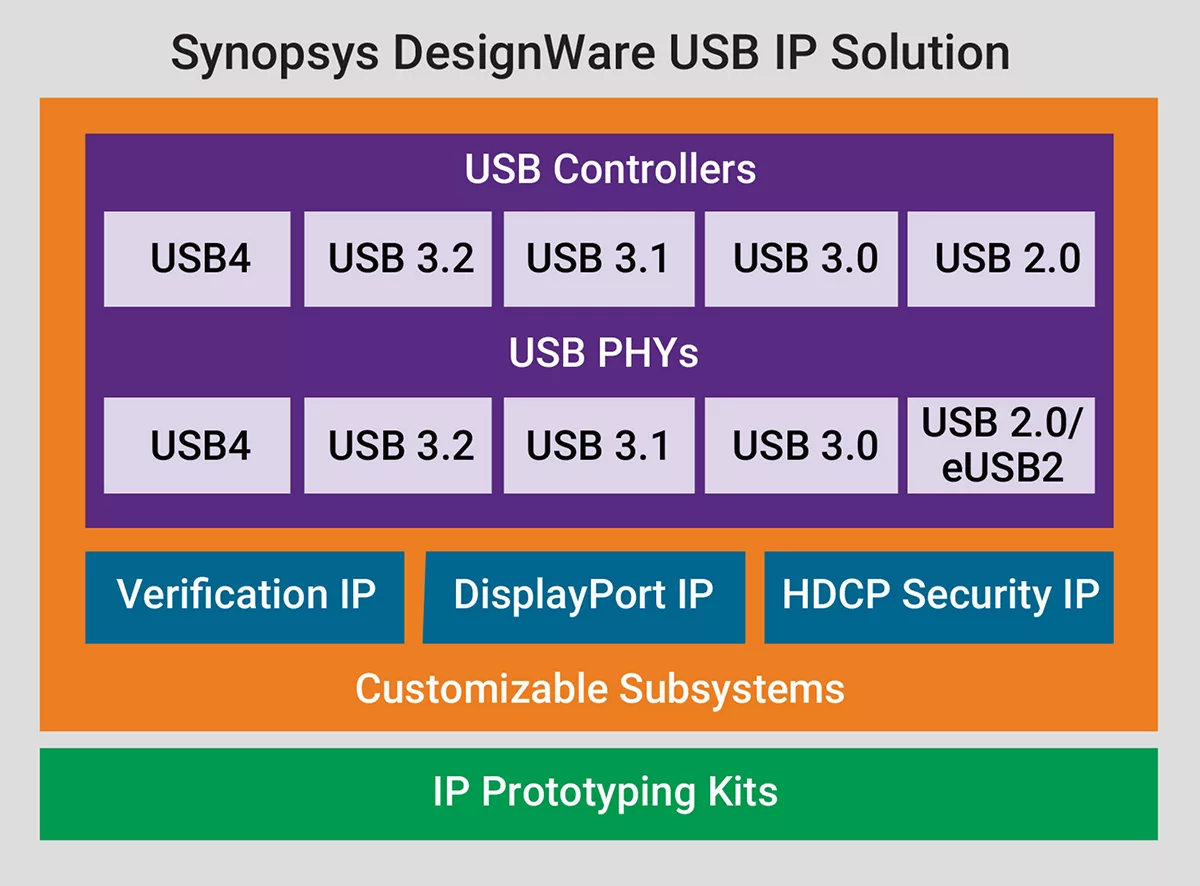

The USB IP is the most certified USB IP solution in the industry. With over 3,000 design wins and approximately three billion silicon-proven units shipped, the vendor complete USB IP solution, consisting of digital controllers, PHYs, verification IP, IP Prototyping Kits and IP software development kits, enables designers to lower integration risk and speed time-to-market.
Learn more about Single-Protocol PHY IP core
