Vendor: T2M GmbH Category: Single-Protocol PHY

USB 3.0 PHY IP, Silicon Proven in TSMC 28HPC+

A Universal Serial Bus (USB) transceiver which is provided for peripheral devices.

Contact Provider Request Datasheet
USB 3.0 TSMC 28nm HPC+ In Production View all specifications

Overview

A Universal Serial Bus (USB) transceiver which is provided for peripheral devices. The PHY is compliant with the USB 3.0 (USB SuperSpeed), USB 2.0 PIPE and UTMI specifications. The USB3.0 PHY IP transceiver is optimized for low power consumption and minimal die area without sacrificing performance and high data throughput. The USB3.0 PHY IP comprises a complete on-chip physical transceiver solution with Electrostatic Discharge (ESD) protection, built-in self-test module with embedded jitter injection, and a dynamic equalization circuit that ensures full support for high-performance designs. Standard PHY interface (PIPE) enables multiple IP sources for USB3 MAC layer. Allowable analog circuit parameter adjustment and internal test control Built-in Self-Test with embedded Jitter Injection Output Jitter reduction with constant power technique.

Key features

  • Compliant with Universal Serial Bus 3.0 Specification
  • Supports 2.5GT/s and 5.0GT/s serial data transmission rate
  • Compliant with PIPE 3.0
  • Compliant with Universal Serial Bus 2.0 Specification
  • High-speed data transfer rate: 480 Mbps
  • Compliant with legacy USB 1.1
  • Full-speed data transfer rate: 12 Mbps
  • Compliant with UTMI 1.05 Specification
  • Operating Voltage: 1.1V and 3.3V
  • Support low jitter automatically calibrated oscillator for crystal-less mode
  • Support 125/250 MHz with 32/16-bit mode for USB 3.0
  • Support the Build-In-Self-Test (BIST) mode for low-cost TEG/ATE testing
  • Silicon Proven in TSMC 28HPC+.

Block Diagram

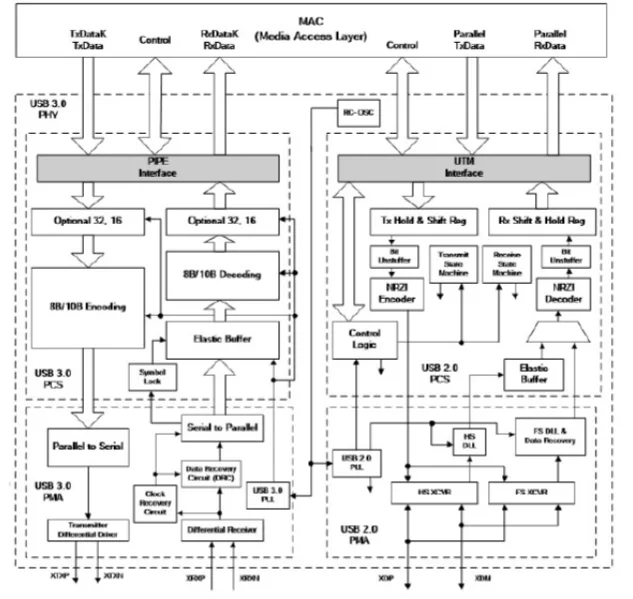

USB 3.0 PHY IP in 28HPC+ block diagram

What’s Included?

  • GDSII & layer map
  • Place-Route views (.LEF)
  • Liberty library (.lib)
  • Verilog behavior model
  • Netlist & SDF timing
  • Layout guidelines, application notes
  • LVS/DRC verification reports

Silicon Options

Foundry Node Process Maturity
TSMC 28nm HPC+ In Production

Specifications

Identity

Part Number
USB 3.0 PHY IP in 28HPC+
Vendor
T2M GmbH
Type
Silicon IP

Standards & Interfaces

Supported Standards
USB 3.0

Files

Product Sheet Download
