What is USB 3.0 PHY?
USB 3.0 PHY is a Single-Protocol PHY IP core from Nano Silicon listed on Semi IP Hub. It is listed with support for smic.
Vendor:
Nano Silicon
Category:
Single-Protocol PHY
USB 3.0 PHY
Key features
- Standard PHY interface (PIPE) enables multiple IP sources for USB 3.0 Link Layer
- Supports 5.0 GT=s serial data transmission rate
- Supports 16- or 32-bit parallel interface
- Supports PCLK as PHY output
- Data and clock recovery from serial stream
- 8b/10b encoder/decoder and error indication
- Receiver detection
- Low Frequency Period Signalling (LFPS) transmission and reception
- Supports transmitting LFPS when power state changes
- Selectable TX margining
- Compliant with USB 3.0 specification
- TSMC 28/TSMC 40/SMIC 40/SMIC 0.13 nm processes

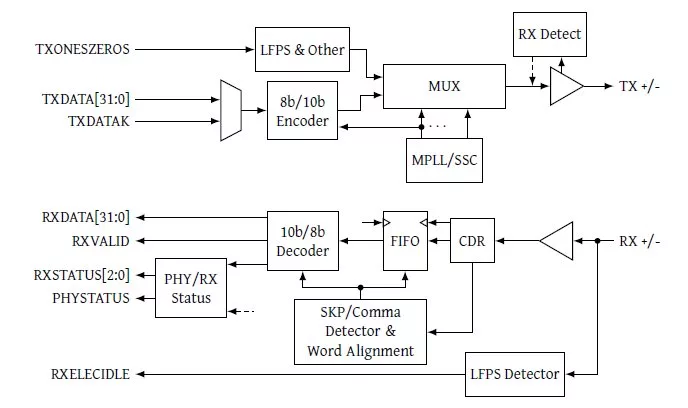

Block Diagram
USB3 block diagram
Benefits
- All USB devices
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 40nm | 40nm 400 nm | — |
Specifications
Identity
Part Number
USB3
Vendor
Nano Silicon
Type
Silicon IP
Standards & Interfaces
Supported Standards
USB 3.0
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
