Vendor: Synopsys, Inc. Category: Single-Protocol PHY

USB 2.0 picoPHY - UMC 28HLP18 x1, North/South (vertical) poly orientation

The USB 2.0 PHY IP provides designers with the industry's best combination of low area and low power with support for USB Type-C …

Contact Provider Request Datasheet
USB 2.0 View all specifications

Overview

The USB 2.0 PHY IP provides designers with the industry's best combination of low area and low power with support for USB Type-C connectivity in leading process technologies from 65-nm to 14/16-nm FinFET. The USB 2.0 PHY IP products include the USB 2.0 femtoPHYs, USB 2.0 picoPHYs, USB 2.0 nanoPHYs, and USB 2.0 HSIC-LPM PHYs.

The USB IP is the most certified USB IP solution in the industry. With over 3,000 design wins and over one billion silicon-proven units shipped, the vendors's complete USB IP solution, consisting of digital controllers, PHY and Verification IP, enables designers to lower integration risk and speed time-to-market.

Key features

  • Ported to over 50 different processes and configurations ranging from 65-nm to 14/16-nm FinFET
  • Supports the USB 2.0 protocol and data rate (480 Mbps)
  • Supports the USB Type-C specification
  • USB femtoPHY, USB nanoPHY and USB picoPHY offer a tunability feature that allows quick, post-silicon adjustments that occur due to process variations, or unexpected chip and board parasitic, without modifying the existing design
  • USB 2.0 PHYs support Device, Host and OTG configurations

Block Diagram

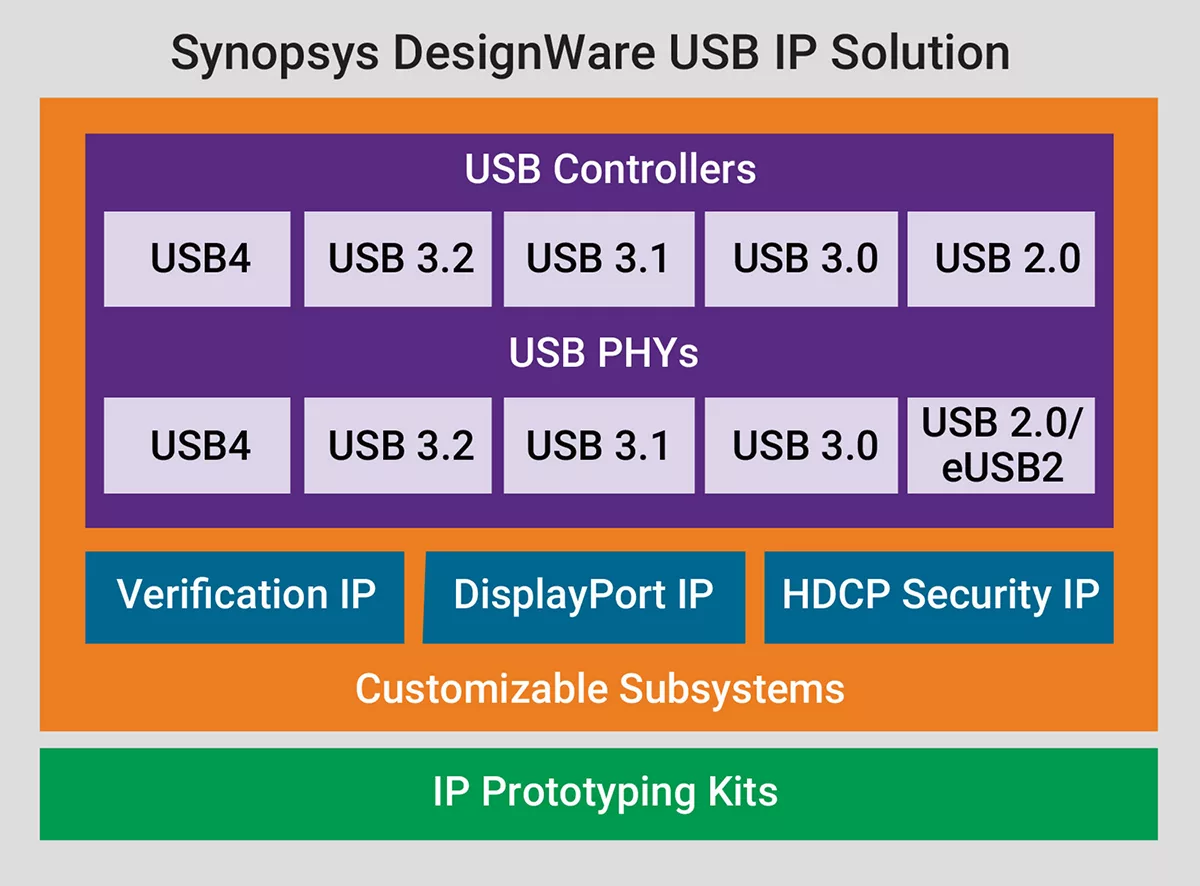

dwc_usb2_picophy_umc28hlp18_otg_x1ns block diagram
