USB 2.0 picoPHY - TSMC 90LPFS33 x1, OTG
The USB 2.0 PHY IP provides designers with the industry's best combination of low area and low power with support for USB Type-C …
Overview
The USB 2.0 PHY IP provides designers with the industry's best combination of low area and low power with support for USB Type-C connectivity in leading process technologies from 65-nm to 14/16-nm FinFET. The USB 2.0 PHY IP products include the USB 2.0 femtoPHYs, USB 2.0 picoPHYs, USB 2.0 nanoPHYs, and USB 2.0 HSIC-LPM PHYs.
The USB IP is the most certified USB IP solution in the industry. With over 3,000 design wins and over one billion silicon-proven units shipped, the vendors's complete USB IP solution, consisting of digital controllers, PHY and Verification IP, enables designers to lower integration risk and speed time-to-market.
Key features
- Ported to over 50 different processes and configurations ranging from 65-nm to 14/16-nm FinFET
- Supports the USB 2.0 protocol and data rate (480 Mbps)
- Supports the USB Type-C specification
- USB femtoPHY, USB nanoPHY and USB picoPHY offer a tunability feature that allows quick, post-silicon adjustments that occur due to process variations, or unexpected chip and board parasitic, without modifying the existing design
- USB 2.0 PHYs support Device, Host and OTG configurations

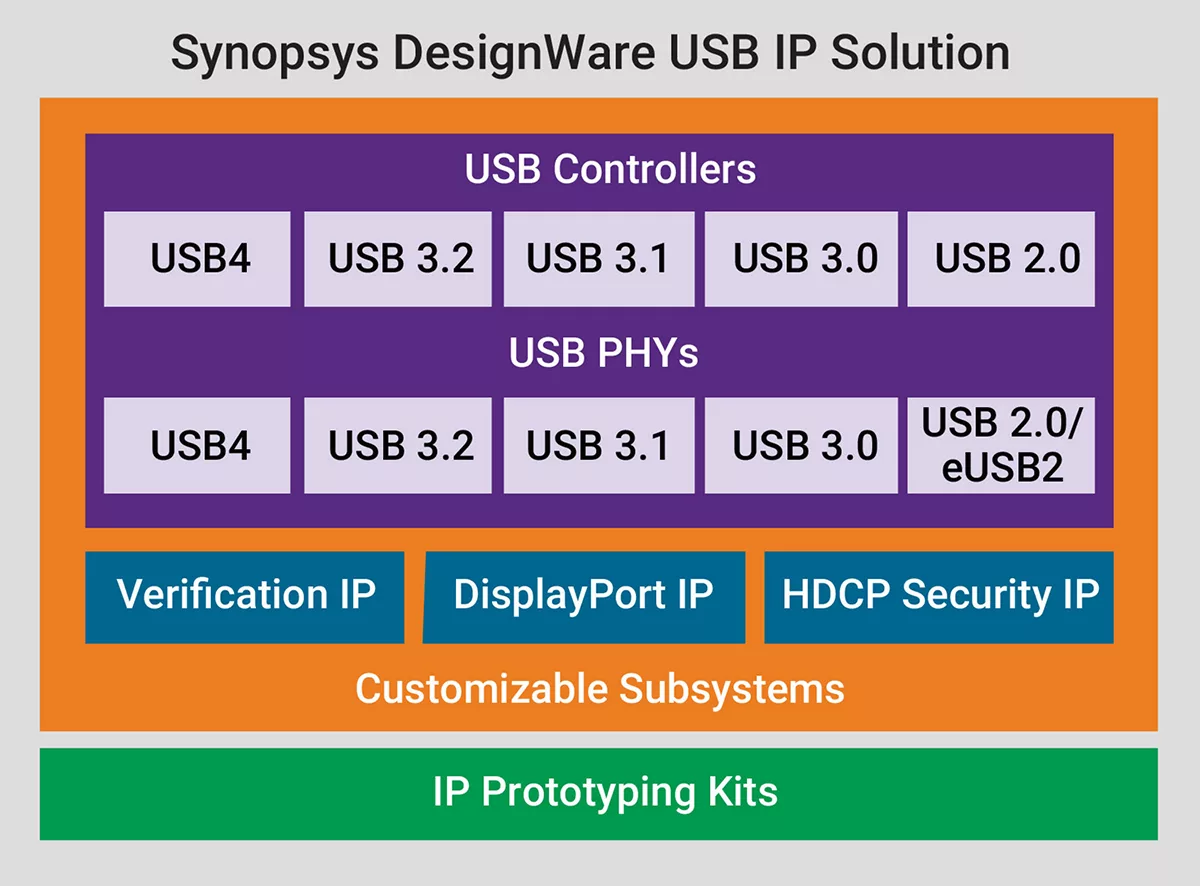

Block Diagram
dwc_usb2_picophy_otg_tsmc90lpfs33_x1 block diagram
Specifications
Identity
Part Number
dwc_usb2_picophy_otg_tsmc90lpfs33_x1
Vendor
Synopsys, Inc.
Type
Silicon IP
Standards & Interfaces
Supported Standards
USB 2.0
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
