Vendor: T2M GmbH Category: Single-Protocol PHY

USB 2.0 PHY IP, Silicon Proven in TSMC 40LP/LL

The USB2.0 PHY IP is an entire physical layer (PHY) IP solution built for high performance and low power consumption.

USB 2.0 TSMC 40nm LP In Production View all specifications

Overview

The USB2.0 PHY IP is an entire physical layer (PHY) IP solution built for high performance and low power consumption. For usage with either hosts, devices, or OTG function controllers, the USB2.0 IP implements a High-Speed USB 2.0 transceiver. The USB2.0 PHY IP is compatible with Full-Speed (12Mbps) and Low-Speed (1.5Mbps) data rates and complies with the UTMI+ level 3 specification. It integrates mixed-signal circuits to support High-Speed data rate at 480Mbps. The USB2.0 PHY IP also supports the additional USB Battery Charging requirements, which are aimed at mobile and consumer product applications. The USB2.0 PHY IP transceiver is designed to have a small chip size and low power consumption without compromising performance or data throughput. To enable complete support for host and device functionality, the USB2.0 PHY IP includes a full on-chip physical transceiver solution with Electrostatic Discharge (ESD) protection, a clock generating block provided by an internal PLL, and a resistor termination calibration circuit.

Key features

  • Compliant with USB2.0 and USB1.1 specification
  • Compliant with UTMI Specification Version level 3.
  • Supports HS(480Mbps)/FS(12Mbps) /LS(1.5Mbps) modes
  • All required terminations, including 1.5Kohm pullup on DP and DM, and 15Kohm pull-down on DP and DM are internal to chip
  • 16-bit, 30MHz or 8-bit, 60MHz parallel interface for HS/FS
  • Serializing for transmitting data stream and Deserializing for receiving data stream
  • USB Data Recovery and Clock Recovery on receiving
  • Integrated Bit Stuffing and NRZI encoding for Transmit
  • Integrated Bit Un-Stuffing and NRZI decoding for Receive
  • SYNC and EOP generation on transmit packets and detection on receive packets
  • Internal reference resistor that replaces the external reference resistor
  • Built in self test for production testing
  • Supports USB suspend state and remote wakeup
  • Supports detection of USB reset, suspend and resume signaling
  • Supports high speed identification and detection as defined by USB 2.0 Specification
  • Support high speed host disconnection detection
  • Silicon Proven in TSMC 40LP/LL

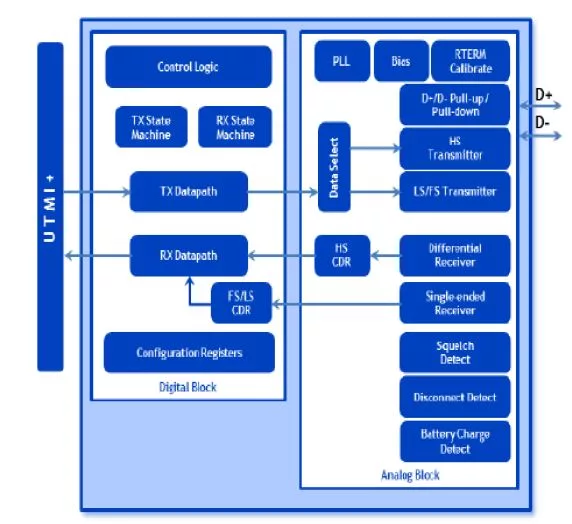

Block Diagram

USB 2.0 PHY IP in 40LP/LL block diagram

What’s Included?

  • Application Note / User Manual
  • Behavior model, and protected RTL codes
  • Protected Post layout netlist and Standard
  • Delay Format (SDF)
  • Frame view (LEF)
  • Metal GDS (GDSII)
  • Test patterns and Test Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 40nm LP In Production

Specifications

Identity

Part Number
USB 2.0 PHY IP in 40LP/LL
Vendor
T2M GmbH
Type
Silicon IP

Standards & Interfaces

Supported Standards
USB 2.0

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
