Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: DC/DC Converter

Ultra low power DCDC

The Power Management Platform offers Ultra Low Power LDOs, DCDCs, Battery Charger, System ON/OFF Control, Fault detection and so …

Overview

The Power Management Platform offers Ultra Low Power LDOs, DCDCs, Battery Charger, System ON/OFF Control, Fault detection and so on. Each LDO, DCDC output voltage and power on sequence can be configurable. The whole PMU solution are silicon verified on 22nm, 40nm, 55nm, 90nm, 110nm process nodes.





Key features

  • PWM mode and PSM mode control
  • 2A maximum output current
  • Dynamic output voltage scaling
  • Spread-spectrum frequency modulation
  • Ultra low quiescent current
  • OTP/OCP/OVP/UVP/PGOOD

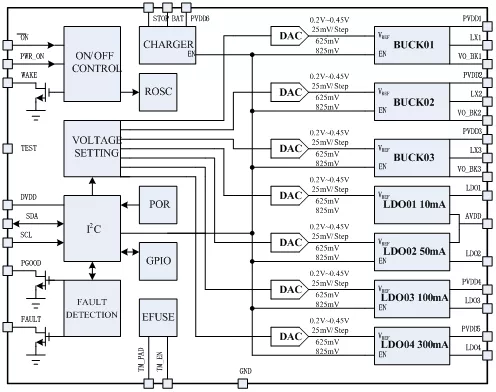

Block Diagram

Ultra low power DCDC block diagram

Specifications

Identity

Part Number
Ultra low power DCDC
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
