30V 0.5A Hysteretic Buck LED Driver

30V 0.5A Hysteretic Buck LED Driver with High-Side and Low-Side Current Sensing on X-FAB XT018-0.18µm BCD-on-SOI CMOS

Contact Provider Request Datasheet
X-FAB 180nm XT018 Available on request View all specifications

Overview

The TS_LEDDRV_30V0A5_X8 is a non-synchronous hysteretic Buck LED driver. It operates with an input voltage range of 20 VDC to 30 VDC. A constant output current is set by hysteretic control using a high-side current sense resistor and a low-side drain current sensing circuit.

It supports hybrid PWM and hysteretic dimming with an approximate 1000:1 resolution and up to 500 mA LED current at 18 V LED string voltage. PWM dimming is applied for currents up to 102.5 mA. Further current increase is realized by hysteretic control.

A low-side NMOS switch with typically 400 mΩ is integrated. The circuit provides a fault detection mechanism at the FET`s DRAIN pin that flags shorts against the rails. The operating switching frequency can range between 150 kHz and 4 MHz depending on the input voltage, buck inductance and LED current range.

The TS_LEDDRV_30V0A5_X8 also supports a direct NMOS switch control mode that can be used in various applications such as switching external constant current regulators.

A low voltage power supply of 3.3 V and bandgap voltage of 1.246 V are needed for operation.

Technology: X-FAB XT018-0.18µm BCD-on-SOI CMOS

OPERATING CONDITIONS

Parameters Values
Junction Temperature -40 ºC to +150 ºC
Input Voltage 20 V to 30 V
Supply Voltage 3.3 V
Bandgap Voltage 1.246 V
LED Voltage up to 18 V
Buck Inductor 36 µH

SPECIFICATION

Parameters Values
Maximum Average LED Current 500 mA
Minimum Average LED Current 0.513 mA
Integrated MOSFET RDS_ON 0.4 Ω to 0.8 Ω
Operating Current on Supply Voltage 2 mA to 6 mA
Switching Frequency 150 kHz to 4 MHz

Block Diagram

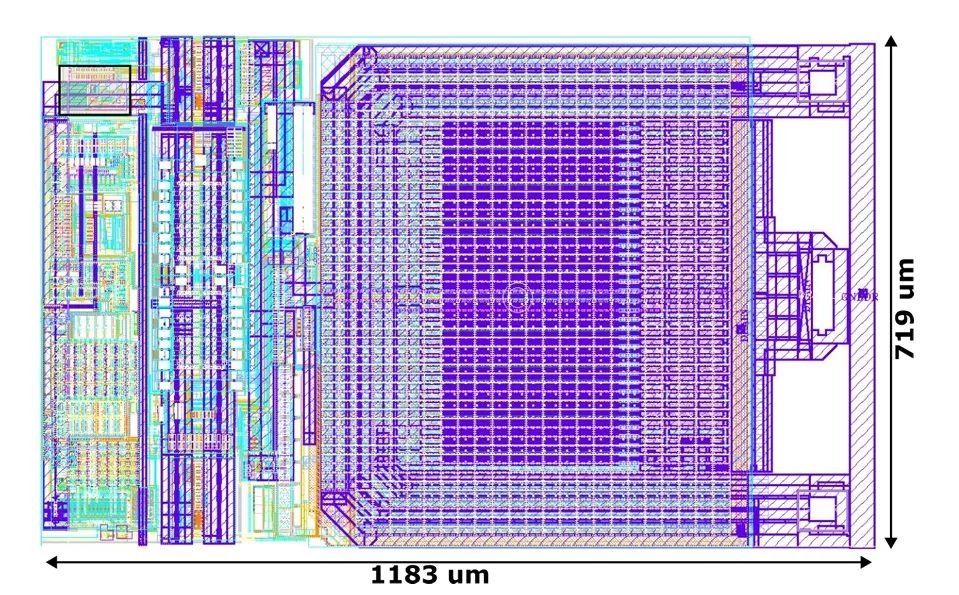

LED Driver Layout View
