Vendor: StarFive Category: CPU

Ultra-low power consumption out-of-order commercial-grade 64-bit RISC-V CPU IP

Dubhe-70 is a 9+ stage, 3-issue, out-of-order CPU IP that supports the rich RISC-V instruction set, RV64GCBH_Zicond_Zicbom_Zicboz…

Contact Provider Request Datasheet
RISC-V View all specifications

Overview

Dubhe-70 is a 9+ stage, 3-issue, out-of-order CPU IP that supports the rich RISC-V instruction set, RV64GCBH_Zicond_Zicbom_Zicboz_Zicbop.With a score of 7.2 SPECInt2006/GHz, Dubhe-70 targets applications that require highly energy-efficient computation, including mobile, desktop, AI, and automotive.Dubhe-70 has been pre-integrated and verified, making it easy to use for SoC development work.With options of single-core, dual-core, or quad-core in a single cluster with memory coherency, Dubhe-70 is highly scalable.

Key features

  • SPECint2006:7.2/GHz
  • Dhystone：6.0/MHz（Legal）
  • RV64GCBH
  • 9+ stage, 3-issue pipeline
  • Superscalar, Deep Out-of-Order Execution
  • Multi-Core Cache Coherence Support
  • Ultra-low power consumption

Block Diagram

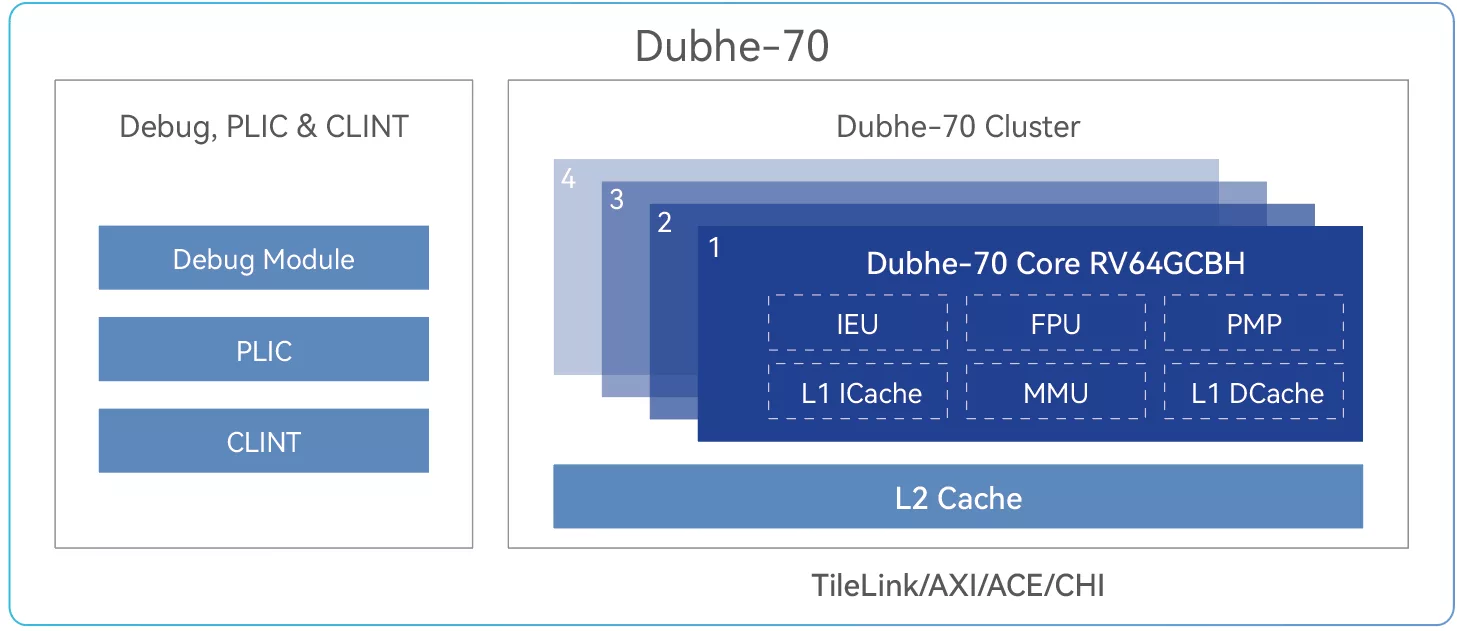

Dubhe-70 block diagram

Applications

Mobile Applications

  • Smartphones
  • Tablets
  • Smart wearables
  • Gaming devices

Industrial Control

  • HMI
  • Industrial display
  • Industrial inspection
  • Smart gateways

AI

  • Robotics
  • Computer Vision
  • Smart home

Specifications

Identity

Part Number
Dubhe-70
Vendor
StarFive
Type
Silicon IP

Compute

CPU Architecture
RISC-V

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

StarFive
HQ: China
Contact StarFive
