TSMC 22ULL 1.8V/3.3V SD/eMMC PHY AG2

Synopsys SD/eMMC PHY provides an optimal balance for cost and performance for storage solutions.

TSMC 22nm ULL View all specifications

Overview

Synopsys SD/eMMC PHY provides an optimal balance for cost and performance for storage solutions. Synopsys SD/eMMC PHY is a hard IP that can be used to implement a single interface that can accomplish 4-bit, 8-bit eMMC & 4-bit SD operations. It includes an optional digi logic circuitry which is required for high-speed operations. It complies with eMMC 5.1 (JESD84-B51A) and SDIO 6.0 JEDEC standards.

Key features

  • Completely hardened PHY solution along with programmable delay chains & IOs
  • Fully selectable output impedance
  • Compliant with eMMC 5.1 (JESD84-B51A) and SDIO 3.0 JEDEC Standard
  • Automotive G1/G2 supported, ASIL-B certified
  • Interoperability checks done with Synopsys Controllers
  • HBM 2KV, CDM 500V(up to 7A), Latch-up: +/-100mA @ 125ºC
  • Silicon validated IP
  • Designed to support multiple metal stack options
  • Support for flip-chip & wirebond packaging

Block Diagram

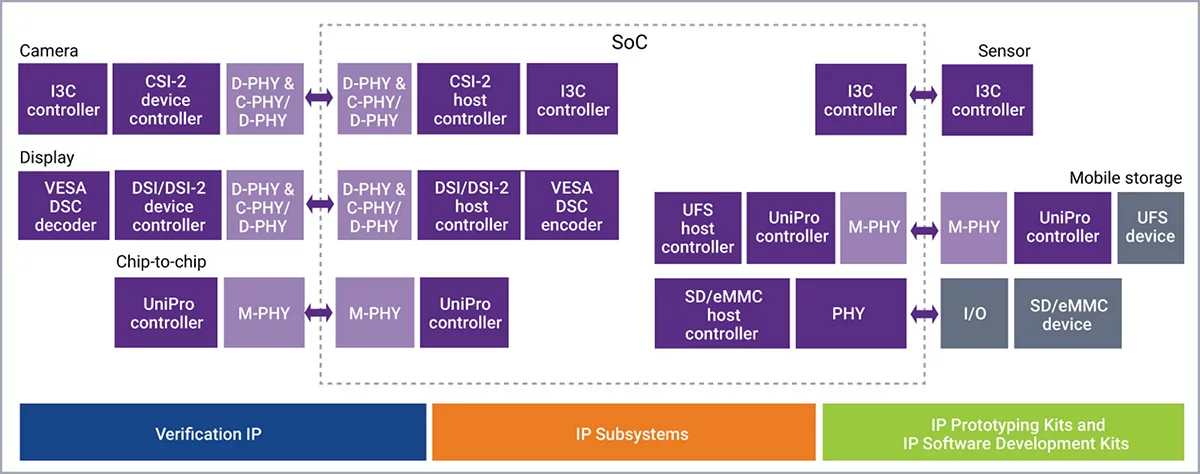

dwc_io_ts22ull_af_3p3v1p8v_sdemmcphy_ag2 block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULL —

Specifications

Identity

Part Number
dwc_io_ts22ull_af_3p3v1p8v_sdemmcphy_ag2
Vendor
Synopsys, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
