Vendor: Dolphin Semiconductor Category: DC/DC Converter

Switching regulator, inductor-based, PWM mode, high efficiency

The eSR-Tugela is an inductor-based buck switching regulator with high efficiency.

GlobalFoundries 22nm FDX Pre-Silicon View all specifications

Overview

The eSR-Tugela is an inductor-based buck switching regulator with high efficiency.

Key features

  • High efficiency buck regulator (up to 95% peak), over wide load current range
  • Pulse With Modulation (PWM) mode enabling to master the frequency response

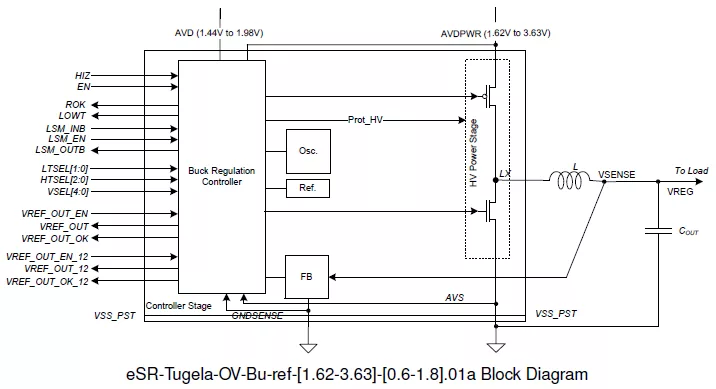

Block Diagram

eSR-Tugela-OV-Bu-ref-1.62-3.63-0.6-1.8.01a_GF_22_FDX block diagram

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Pre-Silicon

Specifications

Identity

Part Number
eSR-Tugela-OV-Bu-ref-1.62-3.63-0.6-1.8.01a_GF_22_FDX
Vendor
Dolphin Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Learn more about DC/DC Converter IP core

Breaking new energy efficiency records with advanced power management platform

The free lunch offered for decades by Moore’s law is now over and scaling down to the next technology node no longer offers the required energy efficiency gains. Design teams must now pursue their gains by deploying increasingly complex power management techniques to meet the demands of the new IoT markets.

Pairing Sensitive RF with Voltage Regulators for Noise-Free IoT Modules

This article presents the challenge of pairing an RF analog circuit with the appropriate inductor-based embedded Switching Regulator (namely eSR, equivalent to on-board DC/DC) allowing to meet both the power efficiency requirements and the module performance level at the same time.

Frequently asked questions about DC-DC Converter IP cores

What is Switching regulator, inductor-based, PWM mode, high efficiency?

Switching regulator, inductor-based, PWM mode, high efficiency is a DC/DC Converter IP core from Dolphin Semiconductor listed on Semi IP Hub. It is listed with support for globalfoundries Pre-Silicon.

How should engineers evaluate this DC/DC Converter?

Engineers should review the overview, key features, supported foundries and nodes, maturity, deliverables, and provider information before shortlisting this DC/DC Converter IP.

Can this semiconductor IP be compared with similar products?

Yes. Buyers can compare this product with similar semiconductor IP cores or IP families based on category, provider, process options, and structured technical specifications.

×
