Vendor: Dolphin Semiconductor Category: DC/DC Converter

Switching regulator, inductor-based, in dual mode (PFM and PWM), high efficiency

eSR-Niagara-Bu-dm-ref-[1.9-4.4]-[0.8-3.3].02, as any Power Management Virtual Component designed by Dolphin Design, is readily re…

Contact Provider Request Datasheet
TSMC 40nm ULP eFlash Pre-Silicon View all specifications

Overview

eSR-Niagara-Bu-dm-ref-[1.9-4.4]-[0.8-3.3].02, as any Power Management Virtual Component designed by Dolphin Design, is readily re-targetable toward any sub micron CMOS process.

Key features

  • High efficiency buck regulator (up to 95% in peak), thanks to dual mode (dm) controller
  • Pulse Frequency Modulation (PFM) mode at low load and Pulse With Modulation (PWM) mode at high load.
  • Low Bill-Of-Material: fully integrated feedback and active compensation loop do not require additional external passive components.
  • Behavioral models: ease integration in SoC and optimized Power Management Network (PMNet) by verifying mode transitions as well as noise propagation

Block Diagram

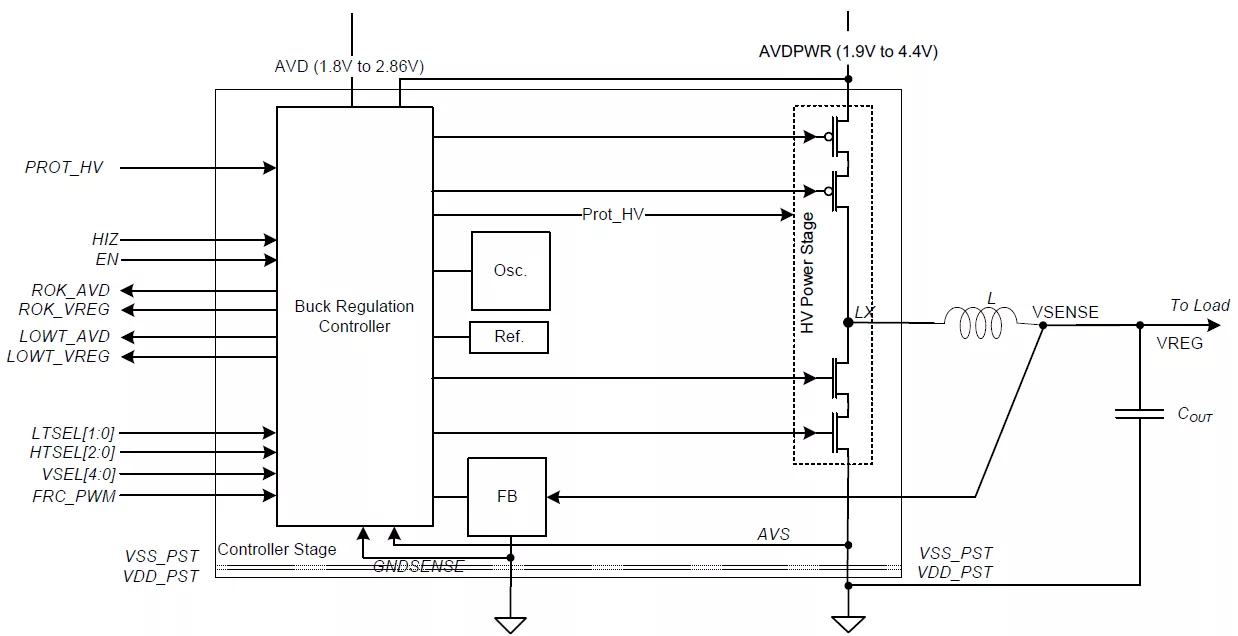

eSR-Niagara-Bu-dm-ref-1.9-4.4-0.8-3.3.02_TSMC_55_uLPeF block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 40nm ULP eFlash Pre-Silicon

Specifications

Identity

Part Number
eSR-Niagara-Bu-dm-ref-1.9-4.4-0.8-3.3.02_TSMC_55_uLPeF
Vendor
Dolphin Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Dolphin Semiconductor

Learn more about DC/DC Converter IP core
