6.2GHz Analog PLL for Spread Spectrum Clock Generator IP

6.2GHz analog phase-locked loop (PLL) IP with a spread spectrum clock generator (SSCG) using TSMC's N3E (N3 Enhanced)

TSMC 3nm N3E Available on request View all specifications

Overview

The AT3E_PLL0000SG6P5G12V1A is a 6.2GHz analog phase-locked loop (PLL) IP with a spread spectrum clock generator (SSCG) using TSMC's N3E (N3 Enhanced) 3nm-class process technology.

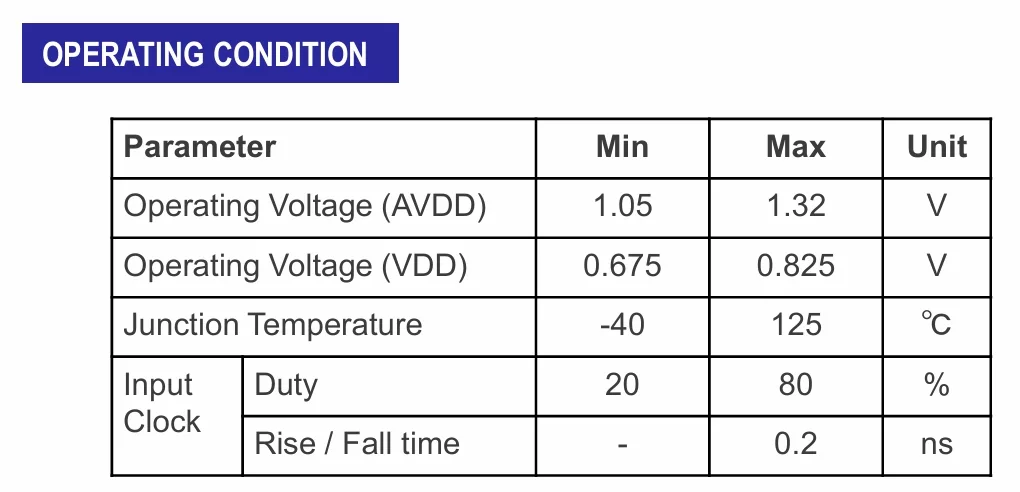

OPERATING CONDITION

Parameter Min Max Unit
Operating Voltage (AVDD) 1.05 1.32 V
Operating Voltage (VDD) 0.675 0.825 V
Junction Temperature -40 125 °C
Input Clock — Duty 20 80 %
Input Clock — Rise / Fall time - 0.2 ns

Key features

  • Includes a loop filter
  • VCO operating range: 3,000MHz to 6,200MHz
  • Output frequency range: 750MHz to 3,100MHz
  • Input frequency range: 10MHz to 200MHz
  • Multiplying
  • Output frequency/Input frequency: 3.75 to 620
  • Fractional multiplying available
  • SSC function available
    • Modulation frequency
      • 20kHz to 60kHz
    • Modulation depth
      • -1% to -6% down spread
      • ±0.5% to ±3% center spread
  • Divider
    • 34-bit feedback divider
    • 3-bit input divider
  • Power-down mode
  • Process:  TSMC N3E

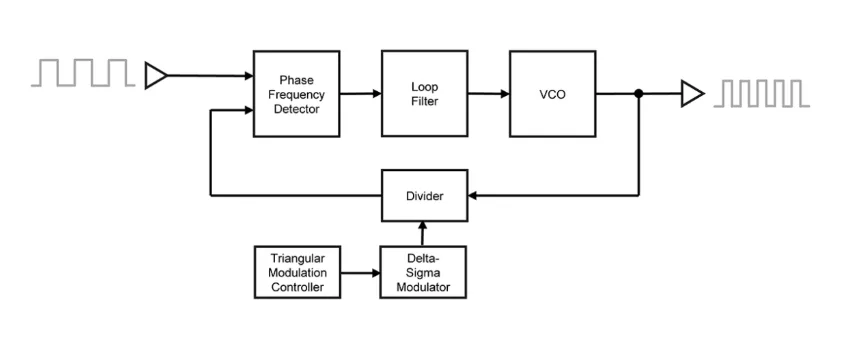

Block Diagram

Click to open fullscreen

Silicon Options

Foundry Node Process Maturity
TSMC 3nm N3E Available on request

Specifications

Identity

Part Number
AT3E_PLL0000SG6P5G12V1A
Vendor
Renesas
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
