SMPTE 2110-22 Sub-system (TX/RX) IP-cores for JPEG XS video over RTP encapsulation

The intoPIX SMPTE 2110-22 Sub-system IP-cores (TX & RX) are combining the IPX-RTP-XS cores for JPEG XS RTP packetization / depack…

Overview

The intoPIX SMPTE 2110-22 Sub-system IP-cores (TX & RX) are combining the IPX-RTP-XS cores for JPEG XS RTP packetization / depacketization and the intoPIX JPEG XS codecs, namely the IPX-TicoXS or the IPX-TicoXS FIP IP-cores. This solution is ideal for implementers as it provides a fully integrated design, compliant with the JPEG-XS video transport over RTP standard, SMPTE 2110, IPMX and VSF TR08.

The intoPIX SMPTE 2110-22 Sub-system IP-cores are ideal to enable any existing SMPTE ST 2110 'uncompressed' FPGA video design to rapidly support SMPTE ST 2110-22 "compressed video" , as a almost 'plug and play' solution. Moreover, it can easily integrates with 2110 cores available from third party IP providers.

Key features

  • RTP Packetization and depacketization compliant with the IETF RTP Payload Format for ISO/IEC 21122 (RFC 9134 / JPEG XS) and recommendations of the VSF TR08.
  • Handles the complete conversion of uncompressed video to SMPTE2110-22 JPEG XS RTP packets when combined with TicoXS / TicoXS FIP encoder/decoder IP-cores
  • Comprehensive software driver for codec and packetization configuration, including JPEG XS Part3 Video support Box and Colour specification boxes generation and extraction
  • A SMPTE 2110-22 Sub-system IP-core that is easy to integrate with existing and third party SMPTE 2110 FPGA design (including Adeas / Nextera, Macnica)
  • Full interoperable with VSF TR08 (tested by interoperability test organized by the VSF with the intoPIX ZCU106 ST2110-22 Demo)
  • (Option) - Compatible with the intoPIX AES encryption IP-cores for secured RTP video transmission

Block Diagram

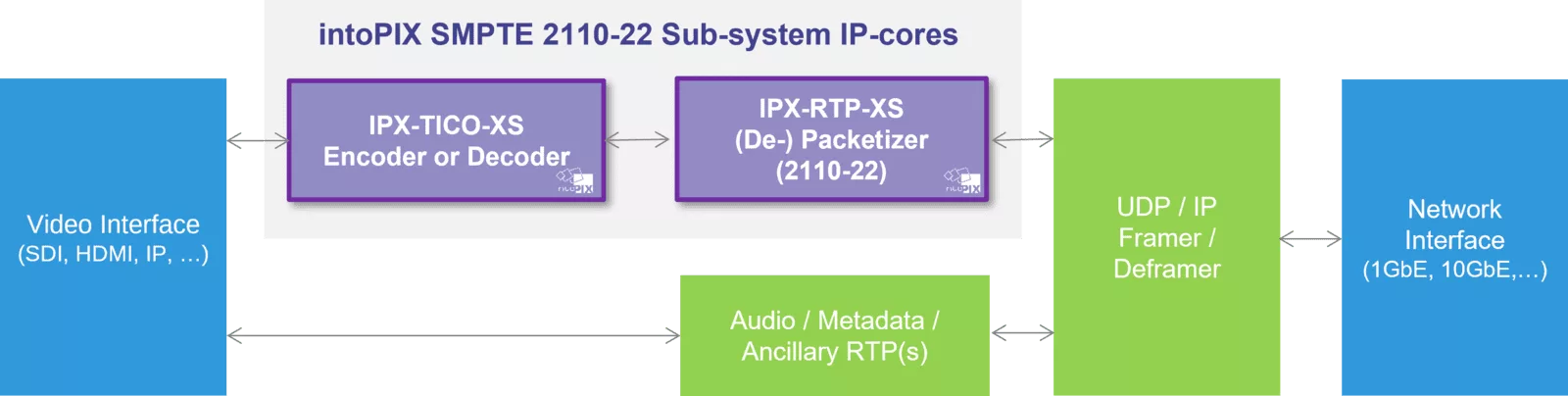

IPX-SMPTE 2110-22-Sub-system block diagram

Specifications

Identity

Part Number
IPX-SMPTE 2110-22-Sub-system
Vendor
intoPIX
Type
Silicon IP

Videos

intoPIX video IPX RTP XS IP Cores for JPEG XS Video over ST2110 22
The IPX-RTP-XS IP-cores perform the RTP packetization/depacketization of streams containing video compressed with JPEG XS. The IP-cores can directly be interfaced with the TICO-XS encoder & decoder IP-cores, in full compliance with standardized JPEG XS transport over RTP. The IPX-RTP-XS IP-cores are ideal to rapidly enable any existing uncompressed SMPTE ST 2110 workflow to also support the compressed SMPTE ST 2110-22 using JPEG XS over RTP.

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

intoPIX
HQ: Belgium
