SD/eMMC - TSMC 7FF, North/South Poly Orientation
To address today’s content capacity and bandwidth requirements, JEDEC and SD Association continue to define new functionality and…
Overview
To address today’s content capacity and bandwidth requirements, JEDEC and SD Association continue to define new functionality and enhancements for embedded mass-storage flash memory (eMMC) and removable flash memory card (SD Card), targeting a range of applications.
The SD/eMMC PHY IP, compliant with the latest JEDEC and SD specifications, is a fully integrated hard macro with high-speed IOs and Delay Locked Loop (DLL)/delay lines. Optimized for power and area, the PHY IP is fully verified and configurable for easy integration into application processors. The PHY IP and the SD/eMMC Host Controller IP offer a fully verified solution that designers can use to integrate the latest embedded and removable memory functionality into their application processor, while speeding time-to-market.
Key features
- Compliant with eMMC 5.1 HS400, SD 6.0 SDR104, DDR50, JESD8-7a (1.2V/1.8V) and JESD8c.01 (3.3V)
- Fully integrated hard macro with high speed IOs and DLL/delay lines
- Fine resolution DLL/delay lines for HS400 strobe and HS200/SDR104 auto-tuning
- Easy to integrate with the highly optimized Synopsys SD/eMMC Host Controller IP, providing a complete low risk solution
- Optimized for area
- Scalable and low pin count solution
- Ultra-low-power operation

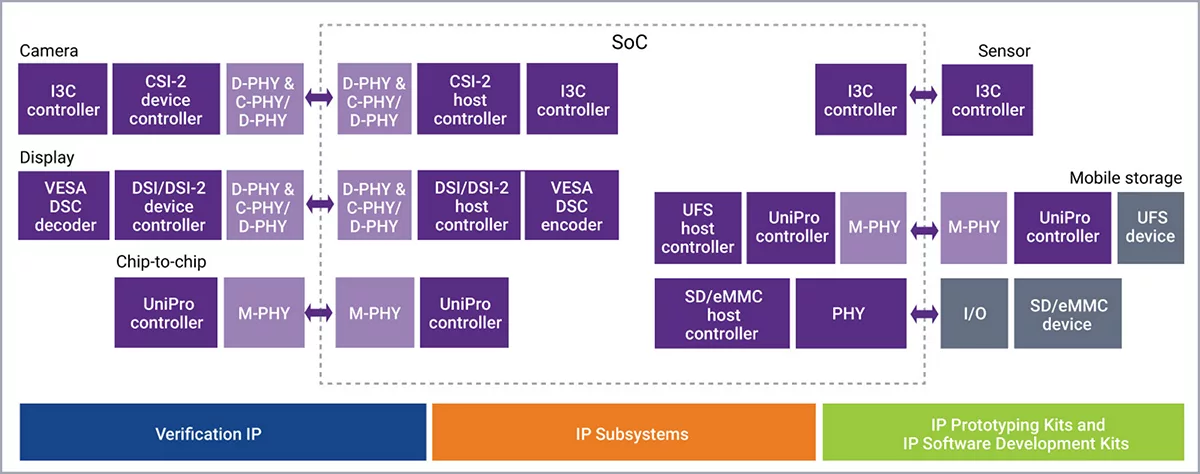

Block Diagram
dwc_sd_emmc_tsmc7ff block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 7nm | N7FF | — |
Specifications
Identity
Part Number
dwc_sd_emmc_tsmc7ff
Vendor
Synopsys, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
