Vendor: KNiulink Semiconductor Ltd. Category: Single-Protocol PHY

SATA/SAS 3.0 transceiver IP with PMA and PCS layer

With sophisticated architecture and technology, the SATA/SAS transceiver IP with PMA and PCS layer is designed for low power and …

Contact Provider Request Datasheet

Overview

With sophisticated architecture and advanced technology, the SATA/SAS transceiver IP with PMA and PCS layer is designed for low power and high performance application. It is highly configurable and can be tightly integrated with the user logic or SOC resources; it can support SATA protocol with data rate 1.5/3/6Gbps, and SAS protocol with data rate 1.5/3/6/12Gbps.

Key features

  • Highly customizable PMA configuration (controlled by PCS), X4 per Quad
  • Support SATA data rate 1.5/3/6Gbps
  • Support SAS data rate 1.5/3/6/12Gbps
  • Digitally-control-impedance termination resistors
  • Built-in TX equalization and RX CTLE
  • RX Built-in Decision Feedback Equalization
  • Built-in Eye Opening Monitor
  • PRBS (PRBS-7/PRBS-15/PRBS-23/PRBS-31) generator and checker
  • Multiple Loop Back
  • Support Non-SSC, center-spread and down-spread SSC
  • Supports SATA OOB signaling
  • Support IEEE 1149.1 and 1149.6(AC JTAG) boundary scan
  • Built-in self-test(BIST) features for production
  • Advanced, built-in diagnostics including on-chip eye monitor
  • Independent QPLL at common for clock flexibility
  • Supports flip-chip package
  • Low Power Consumption

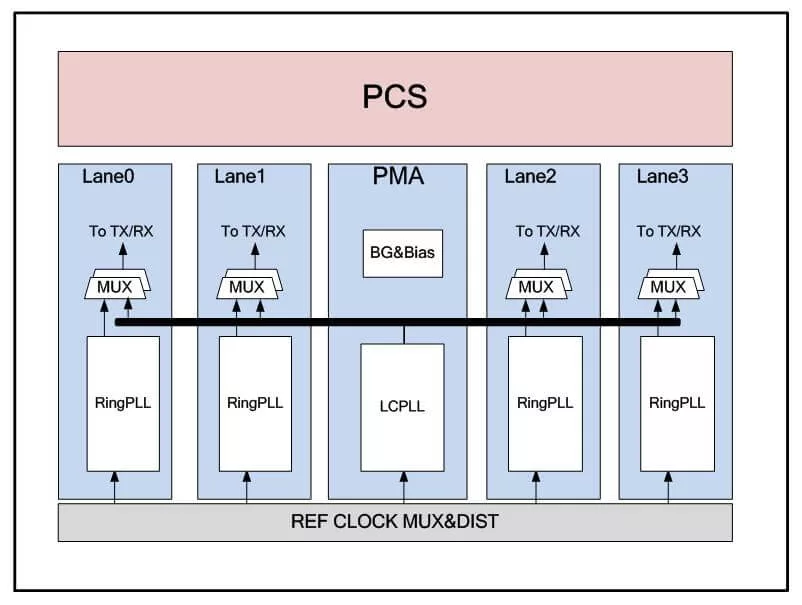

Block Diagram

SATA/SAS 3.0 block diagram

What’s Included?

  • GDSII&CDL Netlist
  • Verilog Model
  • LEF Layout Abstract(.LEF)
  • Liberty Timing Models(.lib)
  • Verify Results
  • Specification
  • Datasheet
  • Integration Guideline
  • Evaluation Plan
  • Leading support for package design, SI&PI modeling and production test development

Specifications

Identity

Part Number
SATA/SAS 3.0
Vendor
KNiulink Semiconductor Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
