RISC-V Application Processor

The NOEL-V is a synthesizable VHDL model of a processor that implements the RISC-V architecture. The NOEL-V can be implemented as a dual-issue processor, allowing up to two instructions per cycle to be executed in parallel.

The NOEL-V is designed for space applications, with a high-performance and fault-tolerant design.  Built on the RISC-V architecture, NOEL-V offers flexibility and customization options, allowing SoC designers to create solutions tailored to their specific needs. Software developers have access to a vast library of existing software and tools to help them create the perfect solution.

‍The NOEL-V has been adopted in several ASIC products. Furthermore it is flight-proven as its capabilities have been demonstrated in Earth orbit.

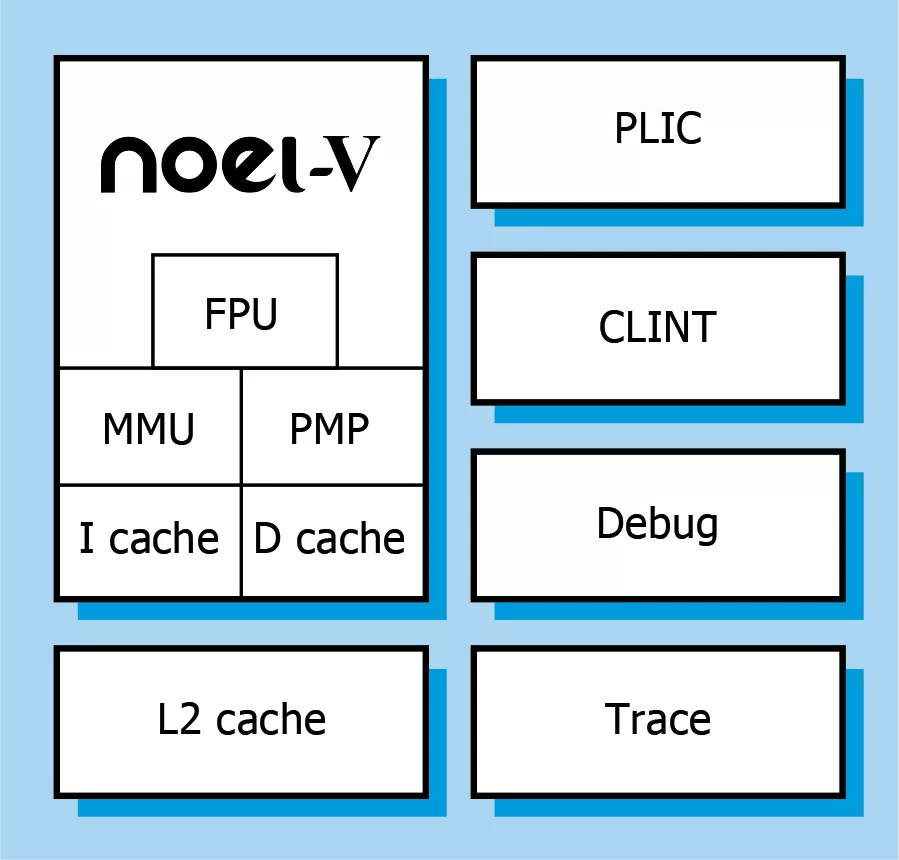

Architecture

The NOEL-V can be implemented as a dual-issue processor, allowing up to two instructions per cycle to be executed in parallel. To support the instruction issue rate of the pipeline, the NOEL-V has advanced branch prediction capabilities. The cache controller of the NOEL-V supports a store buffer FIFO with one cycle per store sustained throughput, and wide AHB slave support to enable fast stores and fast cache refill.

The NOEL-V is interfaced using the AMBA 2.0 AHB bus (but a subsystem with Level-2 cache and AXI4 backend is also available) and supports the IP core plug&play method provided in our IP library (GRLIB). The processor can be efficiently implemented on FPGA and ASIC technologies and uses standard synchronous memory cells for caches and register file.

• RISC-V 32-bit and 64-bit architecture
• Hardware multiply and divide units
• Compressed (16 bit) instruction support
• Atomic instruction extension
• 32/64 bit floating point extensions using non-pipelined area efficient FPU or high-performance fully pipelined IEEE-754 FPU
• Machine, supervisor and user mode.
• RISC-V standard MMU with configurable TLB
• RISC-V Hypervisor (H) extension (adding virtual supervisor mode and virtual user mode)
• Fault Tolerance
• Robust and fully synchronous single-edge clock design
• Large range of software tools: compilers, kernels and debug monitors
• High Performance*: CoreMark: 4.03** / 4.69*** CoreMark/MHz
  • *For HPP64 configuration. CoreMark score varies with processor configuration, microarchitectural changes, and toolchains.
  • **-march=rv64im-mabi=lp64 -O2 -funroll-all-loops -funswitch-loops -fgcse-after-reload-fpredictive-commoning -mtune=sifive-7-series-finline-functionsfipa-cp-clone -falign-functions=8 -falign-loops=8 -falign-jumps=8 --param max-inline-insns-auto=20 using GCC 9.2.0 under RTEMS 5
  • *** Using "#define ee_u32 int32_t" in core_portme.h, as is common for 64 bit RISC-V.
• RISC-V standard APLIC
• RISC-V standard PMP (physical memory protection)
• RISC-V standard external debug support
• RISC-V watchdog
• RISC-V IOMMU
• Support for RISC-V bit manipulation extensions: Zba/b/c/s, Zbkb/c/x
• Support for counter interrupt RISC-V extensions: Sscofpmf
• Support for cache management operations RISC-V extension: Zicbom
• Support for Sstc RISC-V extension
• Advanced dual-issue in-order pipeline
• Dynamic branch prediction, branch target buffer and return address stack
• Four full ALUs, two of them late in the pipeline to reduce stalls
• Separate instruction and data L1 cache (Harvard architecture) with snooping
• Optional L2 cache: 256-bit internal, 1-4 ways, 16 KiB - 8 MiB
• Native AMBA 2.0 AHB bus interface, 32-, 64- or 128-bit wide
• Subsystem including processor and Level-2 cache with AXI4 backend also available.
