PLL ECL phase-frequency detector with ECL charge pump
Phase-frequency detector (PFD) forms control signal for VCO tuning.
Overview
Phase-frequency detector (PFD) forms control signal for VCO tuning. PFD compares phases of divided VCO signal and divided reference oscillator signal and detects phase difference. Charge pump generates pulses for loop filter. Reference frequency 0.32…10 MHz. Output current is 41...142.5 uA.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.
Key features
- iHP SGB25V
- Input signals with low amplitude
- Low disbalance of output current
- Portable to other technologies (upon request)
Block Diagram

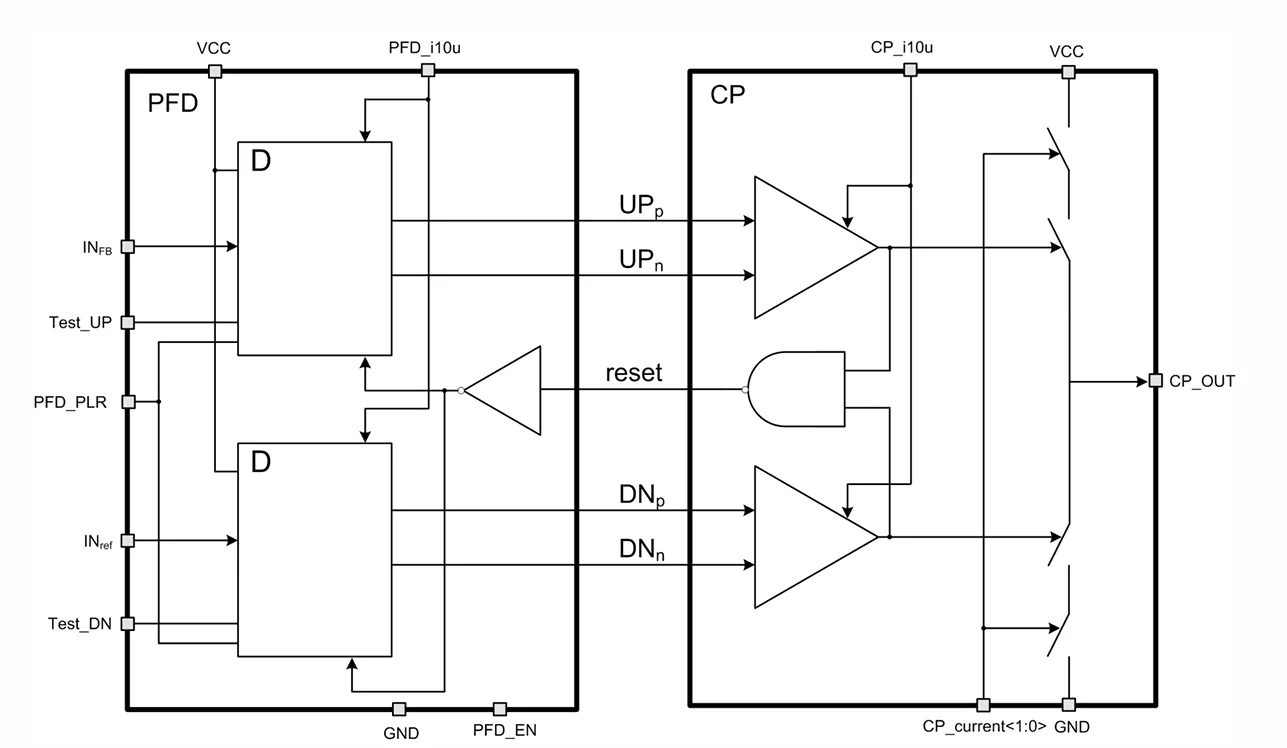

250iHP_PFD_01 block diagram
Applications
- Phase-locked loop synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
