PLL 3.2GHz
This IP is a phase locked loop which base on TSMC 40nm.
Overview
This IP is a phase locked loop which base on TSMC 40nm. It integrates a Phase Frequency detector (PFD), a Charge Pump (CP), a Low Pass Filter (LPF), a Voltage Control Oscillator (VCO) and other associated blocks. All fundamental building blocks as well as fully programmable dividers are integrated on the core. It is developed as a macro cell for clock generator and frequency synthesizer. The output frequency can be up to 3.2GHz. This IP supports operation voltage is 1.1V.
Key features
- Process: TSMC 40nm 2.5V/1.1V 1P8M process
- Metal Required: 6 Layers
- Input frequency range: 24 MHz
- Compare frequency range: 4MHz~8Hz
- VCO operation range: 1GHz~3.4GHz
- Output frequency range: 2GHz/3.2GHz (1-bit select)
- Ambient Temperature Range: -40~125°C
- Single Power supply 1.1V±10%
Block Diagram

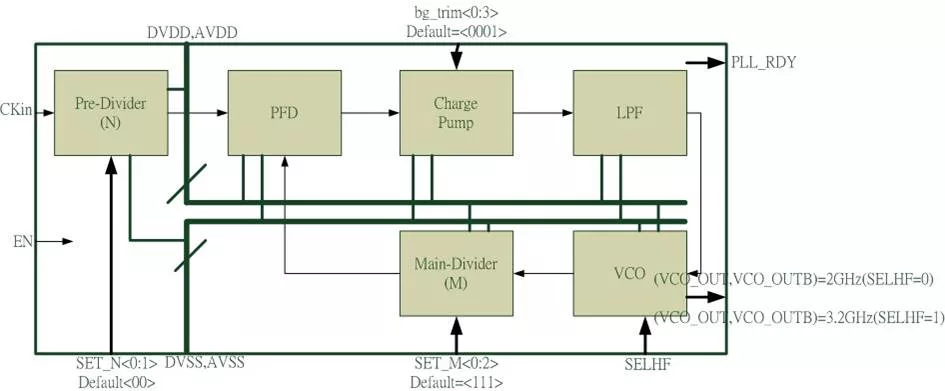

PLL3P2GHZ_TSMC40LP block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 40nm | G | — |
Specifications
Identity
Part Number
PLL3P2GHZ_TSMC40LP
Vendor
VEGA Semiconductor
Type
Silicon IP
Provider
HQ:
Taiwan
