Vendor: M31 Technology Corp. Category: Single-Protocol PHY

PCIe Gen4 PHY, x1-lane, RC/EP, TSMC 16FFC, N/S orientation

The PCIe 4.0 PHY IP provides high-performance, multi-lane capability and low power architecture for high-bandwidth applications.

PCIe Gen4 TSMC 16nm FFC View all specifications

Overview

The PCIe 4.0 PHY IP provides high-performance, multi-lane capability and low power architecture for high-bandwidth applications. The PCIe 4.0 IP supports a complete range of PCIe 4.0 Base applications and is compliant with the PIPE 4.4.1 specification. The IP integrates high-speed mixed signal circuits to support 16Gbps PCIe 4.0 traffic and is backward compatible with 8.0Gbps PCIe 3.1, 5.0Gbps PCIe 2.1 and 2.5Gbps PCIe 1.1 data rates. With the support of TX and RX equalization techniques, the PCIe 4.0 IP is designed to meet the requirements of different channel conditions.

Key features

  • Fully compliant with PCI Express Base 4.0, PCI Express Base 3.1, PCI Express Base 2.1 and PCI Express Base 1.1 electrical specifications
  • Compliant with PIPE4.4.1 (PCIe) specification
  • Supports all power saving modes (P0, P0s, P1, P2) defined in PIPE4.4.1 specification
  • Supports L1 PM Substates with CLKREQ#
  • Supports L1 Clock Power Management (CPM) with CLKREQ#
  • Supports Separate Refclk Independent SSC (SRIS) architecture
  • Accessible register controls allow user-specific optimization of critical parameters (e.g., TXPLL bandwidth, TX de-emphasis level, CDR bandwidth, and EQ strength)
  • Supports robust BIST functions for mass production testing
  • Dual-mode reference clock pad: Output 100-MHz clock reference clock for RC mode or receive 100-MHz clock for EP mode
  • Can be configured up to multi-lane (x4, x8, x16) design with multiple instances
  • Available in 12nm/16nm, 7nm, and 5nm processes

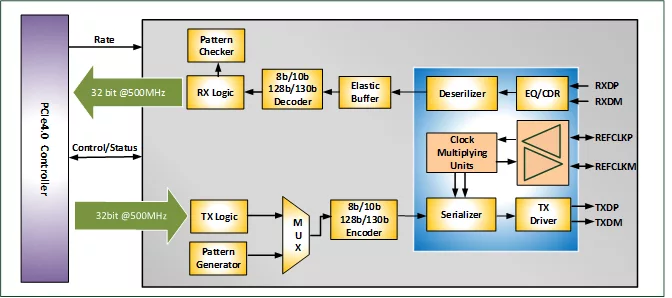

Block Diagram

PCIe Gen4 PHY, x1-lane, RC/EP, TSMC 16FFC, N/S orientation block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 16nm FFC —

Specifications

Identity

Part Number
PCIe Gen4 PHY, x1-lane, RC/EP, TSMC 16FFC, N/S orientation
Vendor
M31 Technology Corp.
Type
Silicon IP

Standards & Interfaces

Supported Standards
PCIe Gen4

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
