Vendor: M31 Technology Corp. Category: Single-Protocol PHY

ONFI IO v6.0, 4.8GT/s, TSMC N7, 1.2V, N/S orientation, H&V cell

ONFI I/O is a non-volatile memory interface technology with high bandwidth capabilities, mainly developed for flash storage appli…

TSMC 7nm N7 View all specifications

Overview

ONFI I/O is a non-volatile memory interface technology with high bandwidth capabilities, mainly developed for flash storage applications. M31 provides a silicon-proven ONFI I/O in a variety of process nodes, which complies with international Open NAND Flash Interface specification, providing on-die termination (ODT) and supporting ZQ impedance calibration, and can be customized based on customer specifications. The ONFI 6.0, ONFI 5.1, and ONFI 5.0 I/O IP have been silicon-proven at advanced FinFet nodes. In addition, M31 also provides solutions for signal integrity (SI) issues such as FFE and DFE.

Key features

  • Supports ONFI 6.0(4.8Gbps), ONFI 5.1(3.6Gbps), ONFI 5.0(2.4Gbps), ONFI 4.1(1.2Gbps), ONFI 4.0(800Mbps) & ONFI 3.2(533Mbps)
  • Power-sequence free
  • Provides multi-driving-strength selection
  • Provides CTT mode and LTT mode
  • Provides two receivers (Schmitt trigger and LVCMOS receiver) in a cell, which can be selected by the register.
  • Provides ODT (On-Die Termination)
  • Provides ZQ Calibration

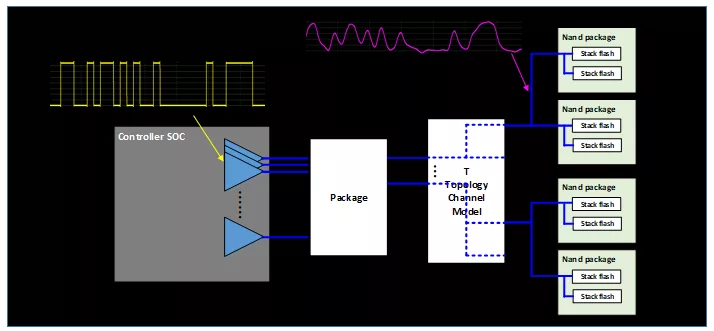

Block Diagram

ONFI IO v6.0, 4.8GT/s, TSMC N7, 1.2V, N/S orientation, H&V cell block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 7nm N7 —

Specifications

Identity

Part Number
ONFI IO v6.0, 4.8GT/s, TSMC N7, 1.2V, N/S orientation, H&V cell
Vendor
M31 Technology Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider
