Octal SPI Master/Slave Controller

Implements a controller for a single-, dual-, quad-, or octal-lane Serial Peripheral Interface (SPI) bus, which can operate either as a master or as a slave.

Designed to work with a wide variety of SPI bus variants, the core supports run-time control of several SPI protocol parameters. For example, the SPI frame width can be 1 to 4 bytes, the most significant bit position in a frame, serial clock phase and polarity are all software programmable. In master mode the core can control up to 32 slaves. A software controllable clock generator derives the serial clock for master mode, by dividing the frequency of a clock line dedicated for that purpose.

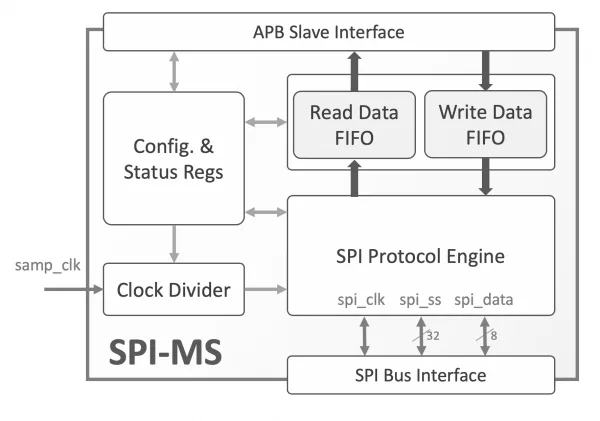

The SPI-MS provides access to is status and control registers, and to the SPI transfer data via a 32-bit APB slave interface. The core treats the APB and SPI clocks as asynchronous to each other, and implements a clean clock domain crossing boundary. The core implements two configurable-depth FIFOs, one for the receiver and one for the transmitter path. To ease integration, an interrupt can be generated to indicate availability of a programmable amount of received data or availability to transmit a programmable amount of new data.

The SPI-MS core is rigorously verified, silicon-proven and available in RTL source or as a targeted FPGA netlist.

• SPI I/O interface
  • Compliant to the SPI de-facto standard
  • Single, dual, quad and octal serial data lines
  • Software programmable transmission formats (CPOL and CPHA)
  • Up to 32 slaves supported under master control
• Configurable SPI transfers
  • Fast sampling clock input for the SPI transfers
  • FIFOs used for transferring data (configurable depth)
  • Full duplex operation
  • LSB or MSB mode
  • 8-bit, 16-bit, 24-bit and 32-bit synchronous serial transmission
• APB interface
  • Compatible with the APB3 protocol specification
  • Software programmable Master or Slave mode
  • Software programmable SCLK rate
  • Interrupt control
• Smooth Technology Mapping
  • Fully synchronous, scan-ready, LINT-clean design
  • Delivered with sample scripts, RTL testbench and sample test cases
• Deliverables
  • Synthesizable RTL or FPGA netlist
  • Testbench & sample test cases
  • Simulation & synthesis scripts
  • Documentation
