Vendor: YEESTOR Microelectronics Co., Ltd Category: NAND Flash

NAND Flash Controller

The NFC IP is a NAND Flash Controller for accessing user data from NAND Flash chips.

Contact Provider Request Datasheet
Controller View all specifications

Overview

The NFC IP is a NAND Flash Controller for accessing user data from NAND Flash chips. It is designed with scalability in mind and provides standard AXI interface for the ease of integration in SoC design. YEESTOR's NFC has many configurable features to support the requirements for different NAND Flash applications. YEESTOR's NFC has been production proven in different products such as USB, eMMC and Client/Enterprise SSD.

Key features

  • Support all kinds of 2D/3D, SLC/MLC/TLC/QLC NAND Flash
  • Supports 8KB~32KB NAND page size
  • Support 1 to 16 FLASH channels
  • Support all Flash command & optional command
  • Support ONFI 4.2/ONFI 4.1/ONFI 4.0/Toggle 2.0 up to 2400MT/s
  • Multi LUN/Die operation support
  • Support CE reduction
  • Support ODT control
  • Support high throughput NAND Flash applications
  • Support AXI interface for the ease of integration
  • Support command FIFO to minimize CPU command latency
  • Support 1K+, or 2K+, or 4K+ bytes CW length
  • LDPC IP (Alcyone) integrated
  • RAID HW engine integrated
  • Scramble HW engine integrated

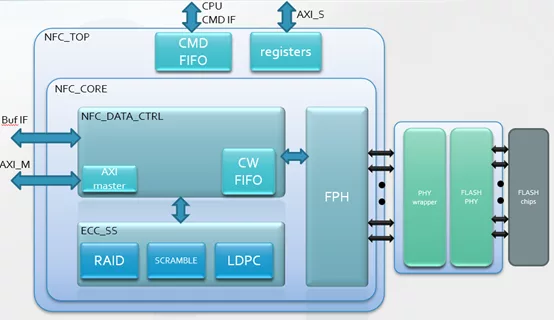

Block Diagram

NFC IP block diagram

Applications

  • USB, eMMC, SATA, PCIe-NVMe Client/Enterprise SSD controller

What’s Included?

  • RTL code
  • CPU model driven verification environment
  • Reference driver firmware
  • Synthesis script and constraint for ASIC and FPGA
  • Datasheet
  • Integration guide
  • Programming guide
  • Register specification
  • Training Course

Specifications

Identity

Part Number
NFC IP
Vendor
YEESTOR Microelectronics Co., Ltd
Type
Silicon IP
Controller / PHY
Controller

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact YEESTOR Microelectronics Co., Ltd
