Nand Flash Controller
NAND Host Controller provides an easy interface to access NAND Flash Memory devices.
Overview
NAND Host Controller provides an easy interface to access NAND Flash Memory devices. It handles all set of commands, address and data sequence
.
Key features
- Simple streaming interface towards user logic for data read and write
- Commands supported towards NAND Flash Memory:
- Read
- Read for Copy Back
- Reset
- Page Program,
- Copy-Back Program,
- Block Erase,
- Random Data Input,
- Random Data Output and Read Status
- ECC Logic: Hamming code used to correct 1-bit error and detect 2-bit errors
- Commands supported from user: Block Erase, Read, Program and Copy-Back Program
- Supports timeout mechanism for all NAND commands and operations
- 2K-byte buffer for write data
- 2K-byte buffer for read data
- Identify factory defined invalid blocks

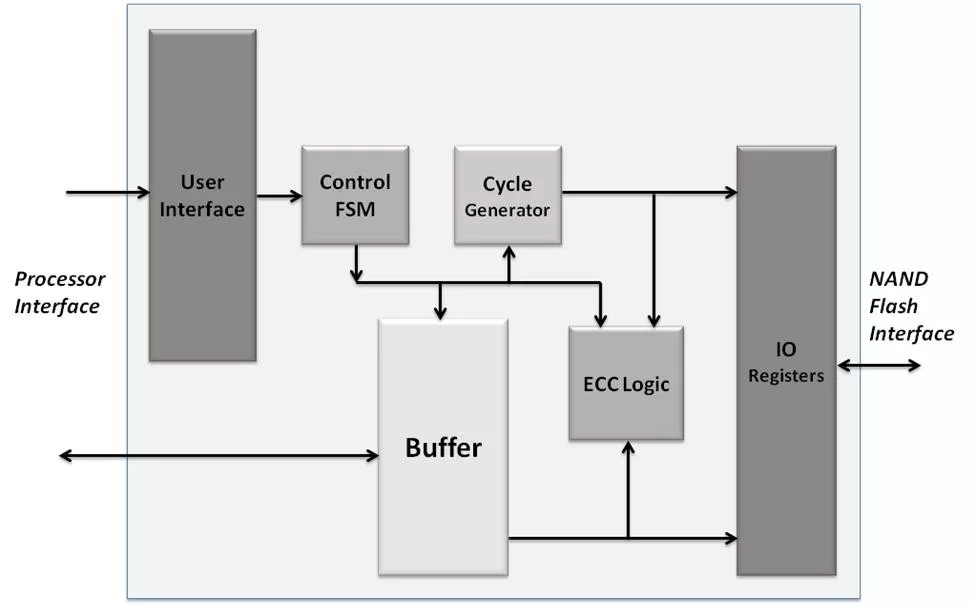

Block Diagram
Nand Flash Controller block diagram
Benefits
- Controller can be interfaced with SLC and MLC NAND flash devices from leading NAND manufacturers
Applications
- Consumer Electronic
- Commercial/Industrial
- Medical and Computing
What’s Included?
- ...
Specifications
Identity
Part Number
Nand Flash Controller
Vendor
iWave Systems Technologies Pvt. Ltd.
Type
Silicon IP
Controller / PHY
Controller
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
