MIPI CSI-2 RX Controller

CSI-2 receiver controller for application processor

Overview

The Cadence Receiver (RX) IP for MIPI® CSI-2sm is a fully verified, configurable, digital core that is compliant with the MIPI Alliance CSI-2 v2.1 specification. The Controller IP is responsible for handling and decoding CSI-2 protocol-based camera or other sensor data stream and managing the forwarding or unpacking of payload data to the pixel-stream interfaces. It is an ideal solution to provide a high-speed serial interface between an application or image processor and MIPI CSI-2 compliant camera sensor.

Key features

  • Standards Compliant. CSI-2 v2.1, with 8-bit and 16-bit PPI data width and links with 1, 2, 4, or 8 data lanes
  • Provides up to 8 Independent Stream Output Interfaces, allowing a highly configurable range of options, including multiple pixel modes, various buffering modes, packed data mode, Data Type selection, and Virtual Channel or Data Type interleaving

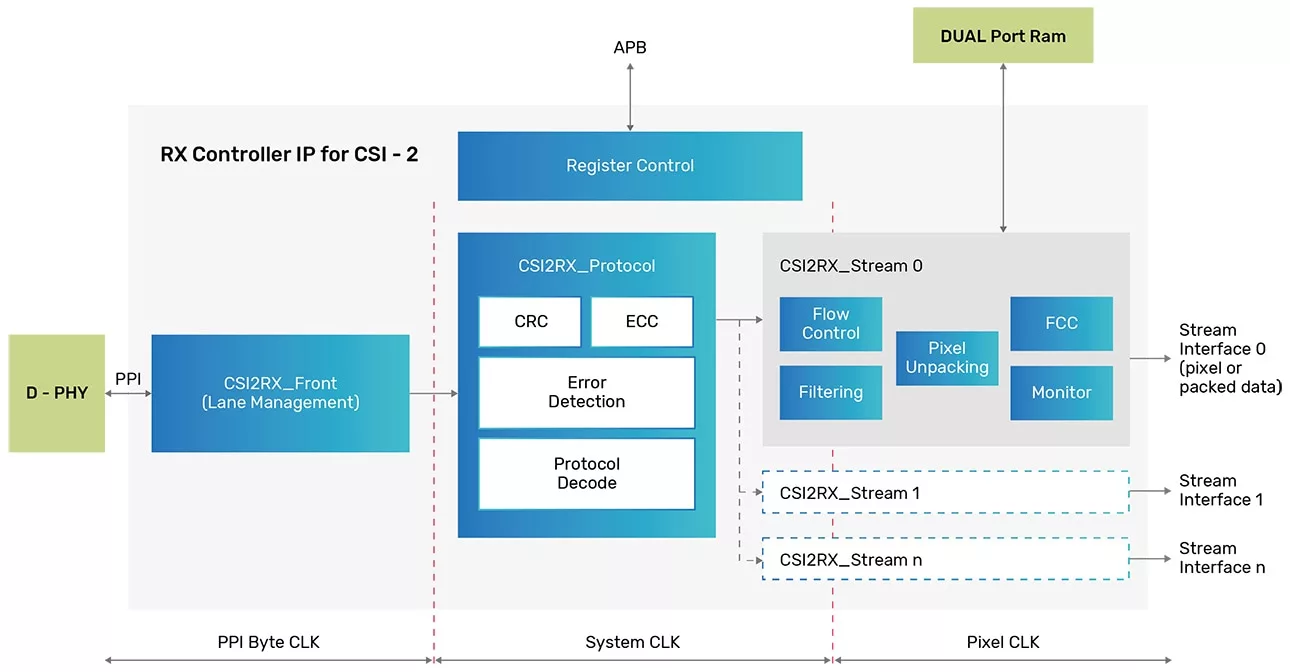

Block Diagram

Click to open fullscreen

Benefits

  • Full-Featured and Highly Configurable IP Core: Area customized for different applications
  • Integrates to Cadence or Third-Party MIPI D-PHY 2.1: Wide range of process nodes supported
  • Automotive Version Available: With safety manual and FMEDA
