Vendor: T2M GmbH Category: Multi-Protocol PHY

MIPHY Consumer SerDes IP, Silicon Proven in ST 28FDSOI

Consumer Multimedia Applications: Wide support of Consumer PHY standards such as PCIe Gen1/2/3, USB 3.0 Super Speed, JESD204B, SA…

Overview

Consumer Multimedia Applications: Wide support of Consumer PHY standards such as PCIe Gen1/2/3, USB 3.0 Super Speed, JESD204B, SATA Gen 1/2/3 and SGMII / QSGMII from 1.125 Gb/s to 8Gb/s / 10 Gb/s.

Key features

  • Consumer Application SERDES
  • From 1.125Gb/s to 8Gb/s/ 10Gbs
  • Technology: 28FDSOI 8ML & 10ML
  • Support multi lane configuration
  • Platform: 1 Data Slice and 1 Clock Slices
  • RX (8G): Synchronous DES with various power modes for consumption or performances
  • TX (8G) : Programmable amplitude, pre-emphasis and slew rate
  • RX (10G): Synchronous DES with low-power CTLE Full Eye-scan capability
  • TX (10G): Power-optimized resistive bridge driver Programmable emphasis
  • Wide support of Consumer PHY Standards
  • PCIe Gen1/ Gen2 Gen3
  • USB 3.0 SuperSpeed
  • SATA Gen 1/2/3
  • SGMII / QSGMII
  • JESD204B
  • Silicon Proven in ST 28FDSOI 8ML & 10ML

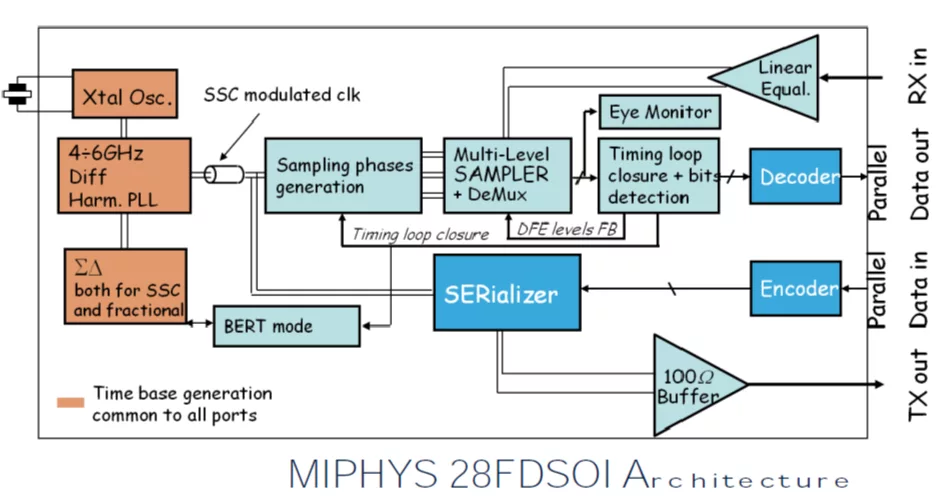

Block Diagram

MIPHY Consumer SerDes IP in 28FDSOI block diagram

Benefits

  • The unique advantages of 28FDSOI technology allow SoC/ASIC designers to gain full benefit of best-in-class Performance, Power, and Area (PPA) in a single process-technology flavour without having to choose multiple technology variants.
  • Multi standard SerDes supporting data rate in the range of 1.125 Gbps - 8 Gbps
  • Low Power Consumption
  • A complete design kit for fast SoC integration

Applications

  • Communications
  • Consumer Electronics
  • Data Processing,
  • Industrial
  • Medical
  • Military

Specifications

Identity

Part Number
MIPHY Consumer SerDes IP in 28FDSOI
Vendor
T2M GmbH
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

T2M GmbH
HQ: Germany
