Memory management unit (MMU) option for ARC HS5x and HS6x processors
The ARC® HS66 and HS68 processors feature a dual-issue, 64-bit superscalar architecture for use in embedded applications where hi…
Overview
The ARC® HS66 and HS68 processors feature a dual-issue, 64-bit superscalar architecture for use in embedded applications where high-performance and high clock speed are required. The processors can be clocked at up to 1.8 GHz in 16FFC processes (worst case, single core, base configuration) and offer outstanding performance delivering 3.0 DMIPS/MHz and 6.16 CoreMark/MHz with a small area footprint and low power consumption.
The ARC HS66 and HS68 processors are based on the advanced ARCv3 instruction set architecture (ISA) and pipeline, which provides leadership power efficiency and code density. The processors feature a 52-bit physical address space and can directly address memories up to 4.5 Petabytes(4.5x1015) in size. For applications requiring higher performance, Multicore Processor (MP) versions of the HS66 and HS68 are available with support for up to 12 HS CPU cores and up to 16 hardware accelerators in the processor cluster.
The ARC HS66 features level 1 (L1) instruction and data cache and closely coupled memory (CCM) and is optimized for use in high-performance real-time embedded applications. The HS68 is designed for use in applications running Linux or SMP Linux. The HS68 has all the features of the HS66 plus support for L2 cache up to 64 MB and a Memory Management Unit (MMU).
To maximize PPA of ARC HS6x-based processor designs, a Fusion QuickStart Implementation Kit (QIK) that includes tool scripts, a baseline floorplan, design constraints and documentation, is available.
Key features
- Dual-issue, 64-bit processors for high-performance embedded applications
- 52-bit physical and 64-bit virtual addressing
- Up to 5400 DMIPS and 11,088 CoreMark per core at 1.8 GHz on 16FFC (worst case conditions, single-core configuration
- Multicore Processor versions with up to 12 CPU cores and up to 16 hardware accelerators
- Based on advanced ARCv3 ISA
- High degree of configurability
- Enhanced MMU (HS68) with hardware page table walk and up to 16 MB page sizes
- Support for custom instructions
- Support for up to 16 MB of closely coupled memory and direct mapping of peripherals
- Floating Point Unit (FPU) supporting half, single- and double-precision IEEE 754-compliant operation
- ARC Trace Interface provides real-time trace debugging features
- Fusion QuickStart Implementation Kit (QIK) with tool scripts, a baseline floorplan, design constraints and documentation maximizes PPA
- Easy performance upgrade from HS3x and HS4x processors
Block Diagram

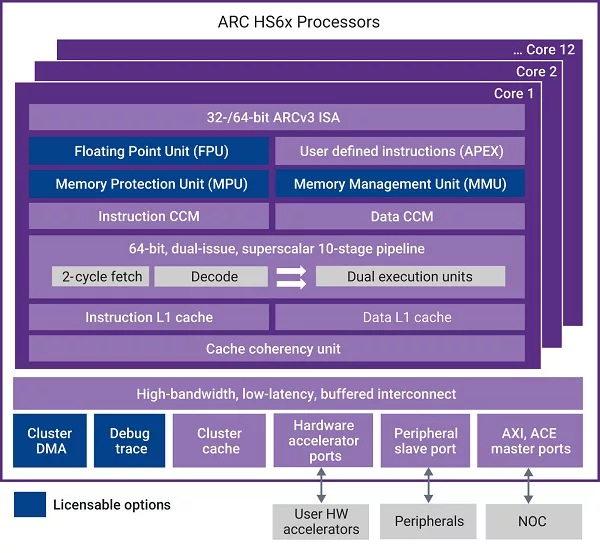

dwc_arcv3_hs_mmu_option block diagram
Specifications
Identity
Part Number
dwc_arcv3_hs_mmu_option
Vendor
Synopsys, Inc.
Type
Silicon IP
Compute
CPU Architecture
ARC
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
