What is LVDS Transmitter?
LVDS Transmitter is a Single-Protocol PHY IP core from Nano Silicon listed on Semi IP Hub. It is listed with support for smic.
Vendor:
Nano Silicon
Category:
Single-Protocol PHY
LVDS Transmitter
The transmitter is designed to support Single link transmission between Host and Flat Panel Display up to 1080p resolutions, Dual…
Overview
The transmitter is designed to support Single link transmission between Host and Flat Panel Display up to 1080p resolutions, Dual Link transmission between Host and Flat Panel Display up to QXGA resolutions. The transmitter converts 70 bits of CMOS data into LVDS (Low Voltage Differential Signaling) data streams. Using a 150MHz clock, the data throughput is 10.5Gbps.
Key features
- Wide frequency range:
- Input: 20 – 150 MHz
- Output: 20 – 150 MHz
- Power-Down Mode
- Supports VGA, SVGA, XGA, SXGA, SXGA+ and QXGA
- On-chip Input Jitter Filtering
- Up to 10.5 Gbit/s bandwidth
- 200 mV swing LVDS devices for low EMI
- PLL requires no external components
- Selectable 8- or 10-bit mode

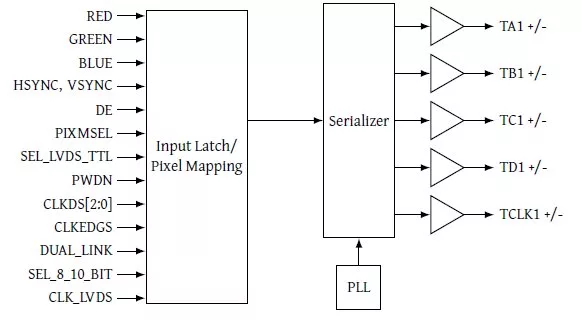

Block Diagram
LVDS_TX block diagram
Applications
- LCD Displays
- HDTV
- Projectors
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 40nm | 40nm 400 nm | — |
Specifications
Identity
Part Number
LVDS_TX
Vendor
Nano Silicon
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
