What is LVDS Receiver?
LVDS Receiver is a Single-Protocol PHY IP core from Nano Silicon listed on Semi IP Hub. It is listed with support for smic.
Vendor:
Nano Silicon
Category:
Single-Protocol PHY
LVDS Receiver
Key features
- Wide frequency range:
- Input: 20 – 150 MHz
- Output: 20 – 150 MHz
- Power-Down Mode
- Supports VGA, SVGA, XGA, SXGA, SXGA+ and QXGA
- Up to 10.5 Gbit/s bandwidth
- PLL requires no external components
- 8- or 10-bit mode

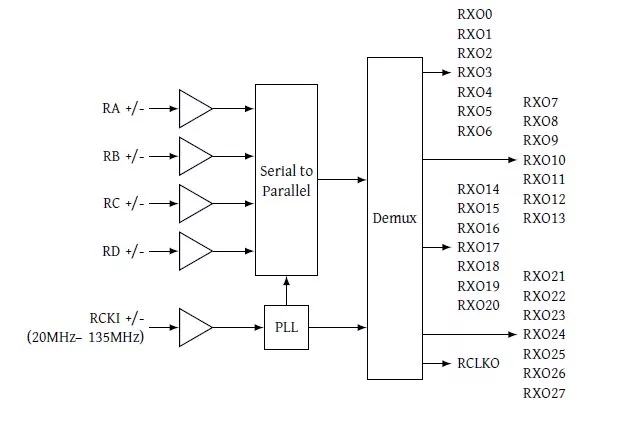

Block Diagram
LVDS_RX block diagram
Applications
- LCD Displays
- Laptop PC
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 40nm | 40nm 400 nm | — |
Specifications
Identity
Part Number
LVDS_RX
Vendor
Nano Silicon
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
