Vendor: Mixel, Inc. Category: Single-Protocol PHY

LVDS Deserializer IP

The MXL-DS-LVDS is a high performance 4-channel LVDS Deserializer implemented using digital CMOS technology.

Overview

The MXL-DS-LVDS is a high performance 4-channel LVDS Deserializer implemented using digital CMOS technology. Both the serial and parallel data are organized into four channels. The parallel data can be 7 or 10 bits wide per channel. The input clock is 25MHz to 165MHz. The De-serializer is highly integrated and requires no external components. Great care was taken to insure matching between the Data and Clock channels to maximize the deserializer margin. The circuit is designed in a modular fashion and desensitized to process variations. This facilitates process migration, and results in a robust design.

Key features

  • 25-165 MHz clock support
  • Up to 1.15 Gbps bandwidth
  • Up to 5 Gbps data throughput
  • Low power CMOS design
  • Power Down mode
  • Low swing LVDS devices for low EMI
  • PLL requires no external components
  • Programmable parallel data width
  • Compatible with TIA/EIA-644 LVDS Standard

Block Diagram

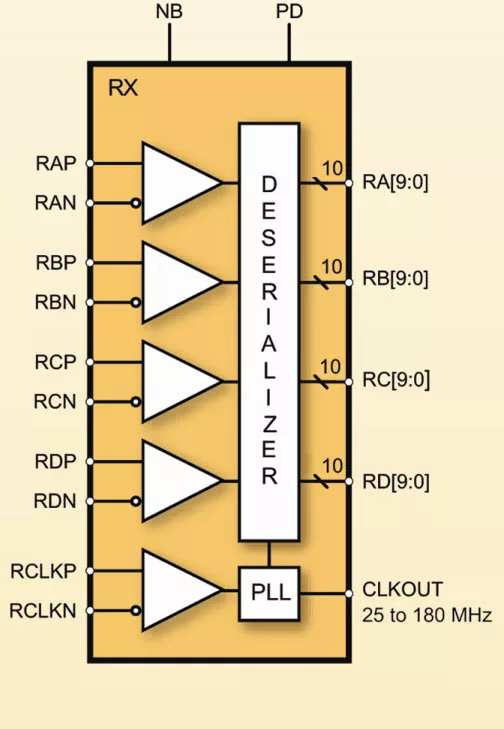

MXL-DS-LVDS block diagram

Specifications

Identity

Part Number
MXL-DS-LVDS
Vendor
Mixel, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
