Vendor: M31 Technology Corp. Category: PLL

Low Power Fractional PLL IP in TSMC(12/16nm FFC, 22nm ULP/ULL, 28nm HPC+)

M31 LPFPLL is a low-power programmable fractional-N (LPF), phase-locked loop (PLL) for frequency synthesis.

Contact Provider Request Datasheet
TSMC 22nm ULP View all specifications

Overview

M31 LPFPLL is a low-power programmable fractional-N (LPF), phase-locked loop (PLL) for frequency synthesis. It can support a wide range of output frequency with fine resolution, as well as supporting multiple input reference frequencies. M31 LPFPLL is ideal for the use in noisy ASIC/SoC environment due to the excellent supply noise immunity. Lockdetect flag supports real-time monitoring of the phase-locked status. With embedded ESD power clamp circuits and internal initial sequence applied to release from complex configurations and settings, M31 LPFPLL is available as a single macro and can be integrated into any ASIC/SoC easily

Key features

  • Compact IP size ( smaller than 0.01mm²) and low power consumption ( < 2.7mW @ 3.5GHz )
  • Compactible with commonly used crystal oscillator frequencies
  • Good power noise immunity for period jitter ( < +-15ps )
  • Support 24-bit fractional accuracy
  • Support down spread-spectrum clocking (SSC) technology
  • Embedded lock-detect flag
  • Embedded frequency meter for mass production test
  • Full deliverables to ease ASIC/SoC integration
  • Embedded watchdog circuit for automotive application

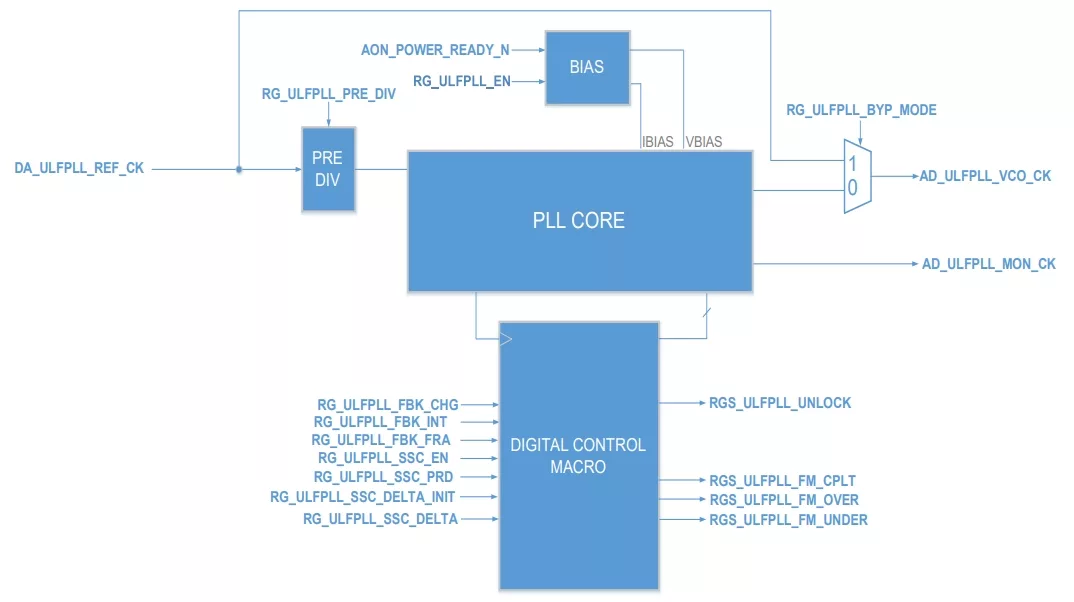

Block Diagram

M31 Low Power Fractional PLL IP block diagram

Silicon Options

Foundry Node Process Maturity
TSMC 22nm ULP —

Specifications

Identity

Part Number
M31 Low Power Fractional PLL IP
Vendor
M31 Technology Corp.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact M31 Technology Corp.
