Vendor: Small World Communications Category: Channel Coding

Inmarsat Compatible 16 State Turbo Encoder

This is a high speed 16 state Inmarsat compatible parallel concatenated turbo encoder.

Contact Provider Request Datasheet

Overview

This is a high speed 16 state Inmarsat compatible parallel concatenated turbo encoder.

Key features

  • 16 state Inmarsat compatible turbo encoder
  • Rate 1/2 to 1/5
  • Data lengths from 8 to 32,764 bits
  • Up to 484 MHz internal clock
  • Up to 242 Mbit/s encoding speed
  • Parallel encoded data out
  • 127 LUTs for Virtex-5, Virtex-6, Spartan-6 and 7-Series
  • Available as EDIF core and VHDL simulation core for Xilinx Virtex-II, Spartan-3, Virtex-4, Virtex-5, Virtex-6, Spartan-6 and 7-Series FPGAs under SignOnce IP License. Actel, Altera and Lattice FPGA cores available on request.
  • Available as VHDL core for ASICs

Block Diagram

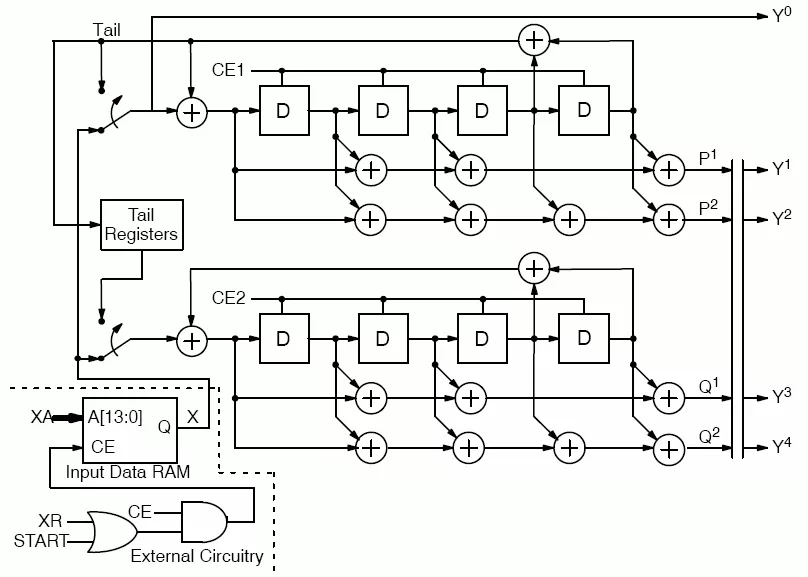

PCE04I block diagram

What’s Included?

  • All Licenses
    • EDIF Core
    • VHDL Simulation Core
    • Test vector generation software
  • VHDL ASIC License
    • VHDL Core

Specifications

Identity

Part Number
PCE04I
Vendor
Small World Communications
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Small World Communications
