Vendor: Creonic Category: Channel Coding

Generic Open Source Viterbi Decoder

Convolutional codes are widely adopted in wireless communication systems for forward error correction.

Contact Provider Request Datasheet

Overview

Convolutional codes are widely adopted in wireless communication systems for forward error correction. Creonic offers you a certified open source Viterbi decoder IP core with AXI4-Stream interface that is capable of decoding most of the convolutional codes as defined by various standards.

Key features

  • Design-time configuration of encoder polynomials (different number of states and different code rates)
  • Support for recursive and non-recursive convolutional codes
  • Windowing technique for reduced latency and memory requirements (with acquisition)
  • Design-time configuration of quantization, maximum window size, RAM usage (distributed RAM vs. Block RAM)
  • Run-time configuration of block length
  • Run-time configuration of window length and acquisition length
  • Block-to-block on-the-fly configuration

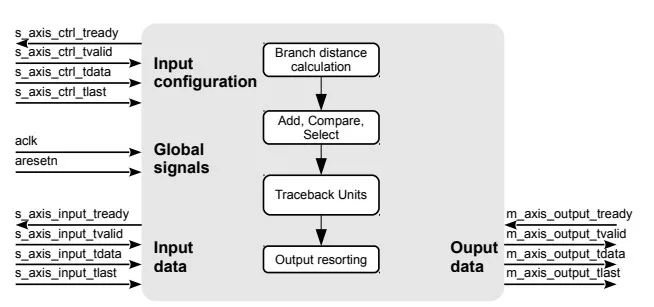

Block Diagram

CREONIC VITERBI block diagram

Benefits

  • Configurable for most standards that apply convolutional codes (GSM, UMTS, CDMA, CDMA2000, WiMAX, WiFi, DAB, DVB, GMR, WiMedia …)
  • Pipelined design for high payload throughputs (about 1 bit per clock cycle).
  • AXI4-Stream interface for simple integration
  • Up to 250 MHz on AMD Xilinx Virtex-6 FPGA (Speedgrade 1)
  • VHDL source code available under GPL license (hosted at opencores.org)
  • Certified by OpenCores
  • Commercial support and licenses available

Applications

  • Mobile Communications
  • Digital Video Broadcasting
  • Digital Audio Broadcasting
  • Satellite Modems
  • Satellite Phones
  • Trunked Radio Systems
  • Microwave Links
  • Ultra-wideband (UWB)
  • Wireless Personal Area Networks (WPAN)
  • Wireless Local Area Networks (WLAN)
  • and many more.

What’s Included?

  • VHDL source code, VHDL testbench, documentation.

Specifications

Identity

Part Number
CREONIC VITERBI
Vendor
Creonic
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Creonic
HQ: Germany
Contact Creonic
