Vendor: KNiulink Semiconductor Ltd. Category: Single-Protocol PHY

High-speed LVDS (Low-Voltage Differential Signaling) transceiver

This IP is a high-speed LVDS (Low-Voltage Differential Signaling) transceiver supporting multi-channel joint.

Contact Provider Request Datasheet

Overview

This IP is a high-speed LVDS (Low-Voltage Differential Signaling) transceiver supporting multi-channel joint. The LVDS TX & RX IP is specified for operation over the industrial temperature range. This IP operates from 3.3V/1.1V supply and works with 992Mbps data rate. It’s compatible with ANSI/TIA/EIA-644-A (LVDS) Standard.

Key features

  • Compatible with ANSI/TIA/EIA 644-1995 LVDS standard
  • Multi-channel LVDS transceiver function
  • Maximum data transfer rate: 992Mbps (496MHz)
  • Typical output voltage: 350mV (100-Ω load)
  • Compatible with TTL level standard
  • Low power consumption
  • Operating junction temperature -40 ~125°C
  • Comprehensive consideration of area, power consumption and performance to achieve the optimal design
  • Support Flip Chip & Wire bond BGA package

Block Diagram

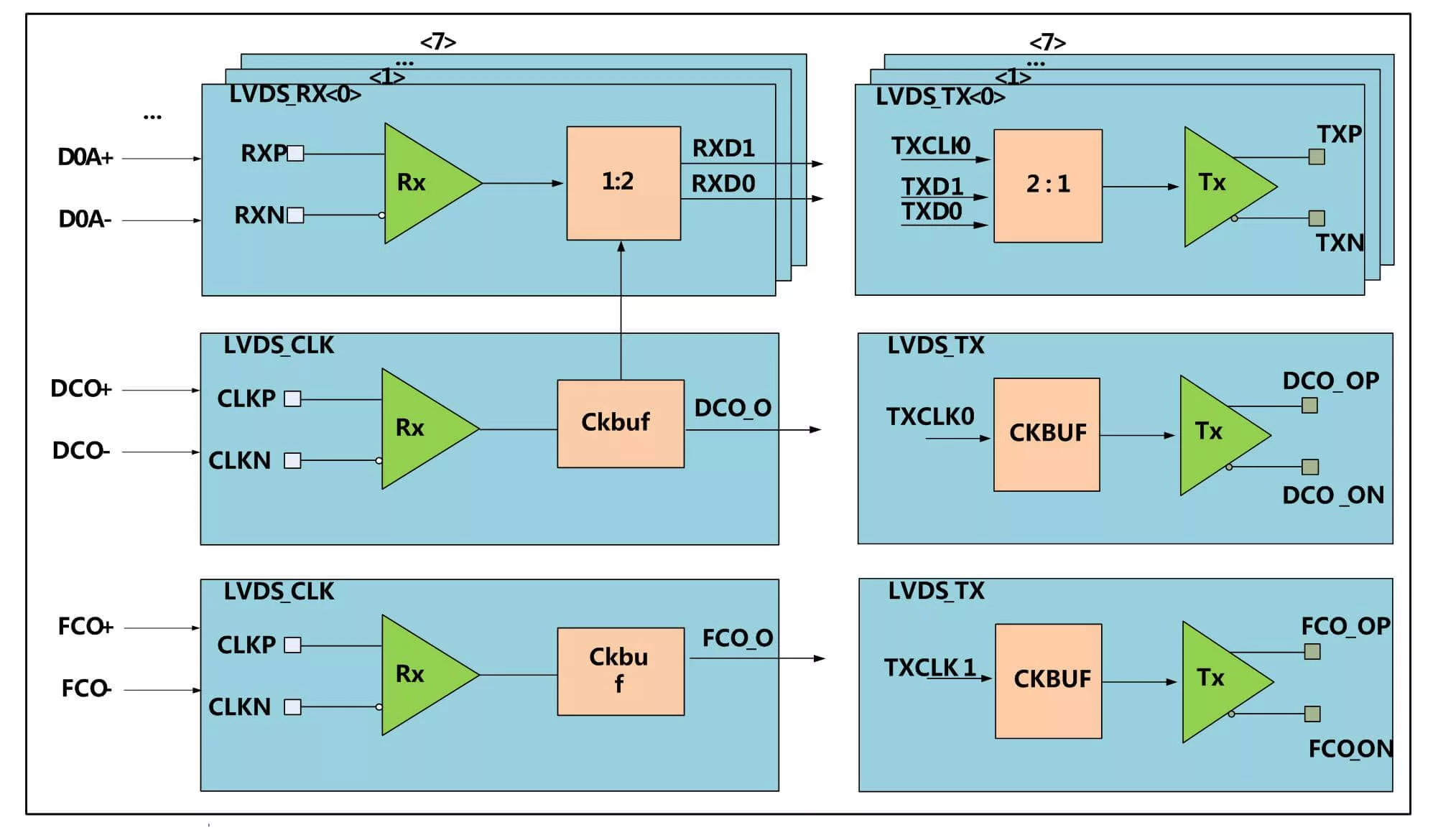

LVDS block diagram

What’s Included?

  • GDSII&CDL Netlist
  • Verilog Model
  • LEF Layout Abstract(.LEF)
  • Liberty Timing Models(.lib)
  • Verify Results
  • Specification
  • Datasheet
  • Integration Guideline
  • Evaluation Plan
  • Leading support for package design, SI&PI modeling and production test development

Specifications

Identity

Part Number
LVDS
Vendor
KNiulink Semiconductor Ltd.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
