High Speed Ethernet 2/4/8-Lane 200G/400G PCS
The Ethernet 400G and 200G Physical Coding Sublayer (PCS) IP is compliant with the IEEE 802.3bs standard and provides a set of fe…
Overview
The Ethernet 400G and 200G Physical Coding Sublayer (PCS) IP is compliant with the IEEE 802.3bs standard and provides a complete set of features that enable users to define an optimized PCS in products across a range of 400G/200G Ethernet applications.
The PCS IP is designed to work with the Ethernet MAC IP to deliver solutions for 200G & 400G Ethernet applications. The multi-channel, multirate PCS allows flexible use of the various lanes for different PMA interfaces. The IP also includes multiplexed Reed-Solomon Forward Error Correction (RS-FEC) functions for use by different channels at various speeds.
Key features
- Compliant with the IEEE 802.3bs standard
- 400G PCS available in single, quad or octal port supporting multiple 100G/50G/25G/10G SerDes lanes
- 200G PCS available in single or quad port supporting multiple 100G/50G/25G/10G SerDes lanes
- Designed to be used with Synopsys 400G and 200G Ethernet MAC IP for 400G/200G Ethernet systems
- Supports RS-FEC function
- Silicon proven
- Integration tested with the Synopsys 400G/200G Ethernet MAC and 112G Ethernet PHY IP

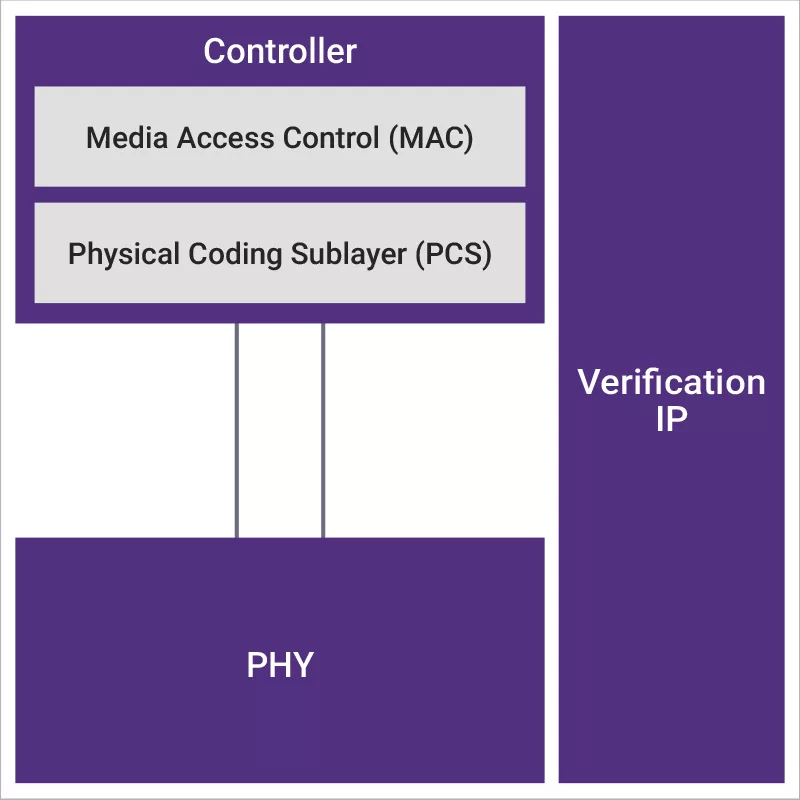

Block Diagram
dwc_ether_hse_400gpcs block diagram
Specifications
Identity
Part Number
dwc_ether_hse_400gpcs
Vendor
Synopsys, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
