What is High Speed CCSDS Turbo Decoder with Optional Viterbi Decoder?
High Speed CCSDS Turbo Decoder with Optional Viterbi Decoder is a Channel Coding IP core from Small World Communications listed on Semi IP Hub.
Vendor:
Small World Communications
Category:
Channel Coding
High Speed CCSDS Turbo Decoder with Optional Viterbi Decoder
This is a CCSDS compatible 16 state error control turbo decoder.
Overview
This is a CCSDS compatible 16 state error control turbo decoder. The PCD04C offers unparalleled speed, performance, low complexity and features compared to other available decoder cores.
Key features
- Turbo Decoder
- 16 state CCSDS compatible
- Rate 1/2 to 1/7
- Interleaver sizes from 1784 to 16056 bits
- Up to 342 MHz internal clock
- Up to 33.3 Mbit/s with 5 decoder iterations
- 6-bit signed magnitude input data
- Log-MAP or max-log-MAP constituent decoder algorithms
- Up to 128 iterations in 1/2 iteration steps
- Power efficient early stopping
- Extrinsic information output with optional scaling and limiting
- Estimated channel error output
- Free simulation software
- Viterbi Decoder (Optional)
- 64 or 256 state (constraint length 7 or 9)
- Rate 1/2, 1/3 or 1/4
- Block lengths from 1784 to 16056 bits
- Up to 9.9 Mbit/s (256 state) or 33.7 Mbit/s (64 state)
- 6-bit signed magnitude input data
- Estimated channel error output
- Available as VHDL core for Xilinx FPGAs under SignOnce IP License. ASIC, Altera, Lattice and Microsemi cores available on request.

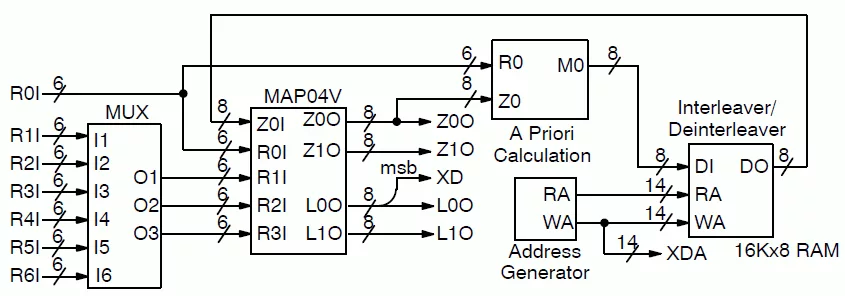

Block Diagram
PCD04C block diagram
What’s Included?
- Xilinx VHDL core
- Test vector generator software
Specifications
Identity
Part Number
PCD04C
Vendor
Small World Communications
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Australia
