HBM3 PHY and Controller.

MSquare's HBM3 IP (the 3rd generation of High-Bandwidth Memory) is specifically tailored for applications that require high memor…

Contact Provider Request Datasheet
Controller + PHY View all specifications

Overview

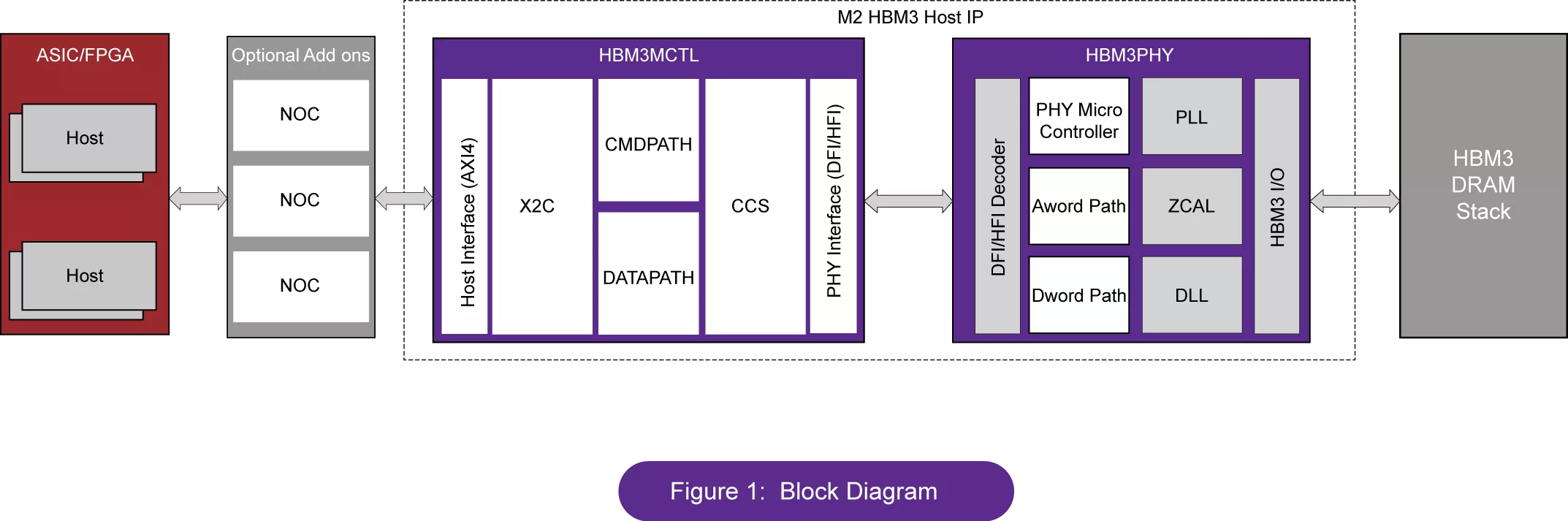

MSquare's HBM3 IP (the 3rd generation of High-Bandwidth Memory) is specifically tailored for applications that require high memory throughput and low latency, complying with the JESD238 memory standard. It includes both PHY and Memory Controller components, supporting HBM3 SDRAM speeds ranging from 4.8Gbps/pin to 6.4Gbps/pin. Flexible configurations are available, including PHY Only, PHY + Controller, and Controller Only, to accommodate diverse customer design specifications. Additionally, the chip's footprint and power consumption are highly competitive within the industry.

Key features

  • Designed for high memory throughput and low latency applications
  • Consists PHY and Memory Controller
  • Optimized for 12nm process
  • Supports speed up to 6.4Gbps/pin
  • Features integrated PLL and IO
  • Flexible configurations available: (PHY only) or ( PHY + Controller) or (Controller only)
  • Supports both firmware-based training and hardware-based training
  • Optional Add-on IPs to achieve best performance
  • Minimized footprint and power consumption

Specifications

Identity

Part Number
HBM3
Vendor
MSquare
Type
Silicon IP
Controller / PHY
Controller + PHY

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

MSquare
HQ: China
Contact MSquare
